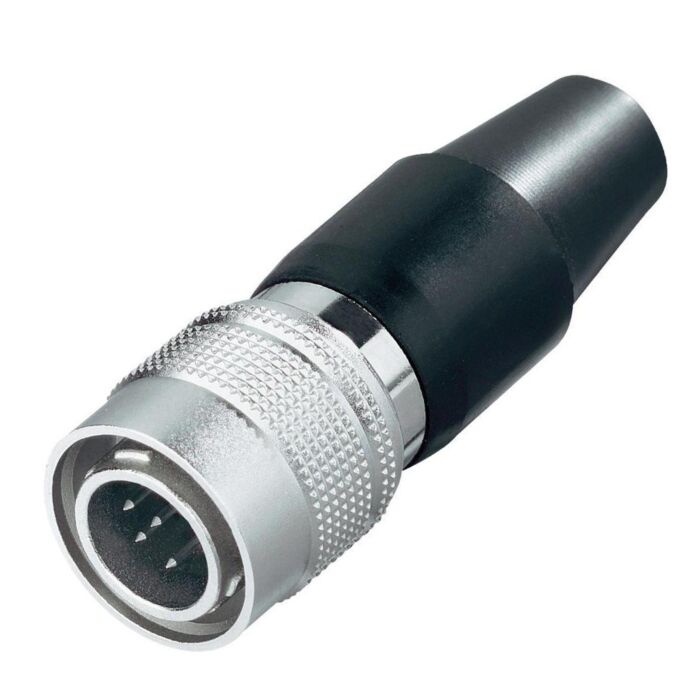

Hirose Male HR10A-7P-4P 73 4 Pole Audio Technica Wireless Pack Connector. Black
£18.32
In stock
We have 6 items in stock!
SKU
MULTIPOLE_HR10A-7P-4P(73)
Multibuy discounts calculated at checkout
- Buy 5 for £17.40 each and save 5%
- Buy 10 for £16.49 each and save 10%
- Buy 15 for £15.57 each and save 15%
- Buy 20 for £14.66 each and save 20%
Micro-miniature, push pull lock type circular connectors suitable for computer peripherals, office computers, medical equipment, audio equipment, portable wireless devices, measuring instruments etc.
Micro-miniature, push pull lock type circular connectors suitable for computer peripherals, office computers, medical equipment, audio equipment, portable wireless devices, measuring instruments etc.
Micro-miniature, push pull lock type circular connectors suitable for computer peripherals, office computers, medical equipment, audio equipment, portable wireless devices, measuring instruments etc.
Technical Specification
Rated Current - 2.0 A
Rated Voltage (AC) - AC 150.0 V
Rated Voltage (DC) - DC 200.0 V
Number of Positions - 4
Shell Size (mm) - 7 mm
Operating Temperature Max. - 85 ℃
Operating Temperature Min. - -25 ℃
Contact Resistance - 10.0 mΩ Max.
Withstanding Voltage - 500 V Max.
Locking Style - Push-pull
Wire Termination Method - Solder
Cable Outer Diameter - 5.0 mm
Mating/Unmating Cycles - 1000
Contact Plating - Silver
Shell Material - Metal
Finish on Shell - Nickel
| Delivery Speed | Next Day delivery available if 'In Stock' |
|---|---|
| Mounting Method | Cable Mount - Solder |
| Contact Material | Silver Plated |
| Number of Contacts | 4 Pole |
| Pack Quantity | Pack of 1 |
