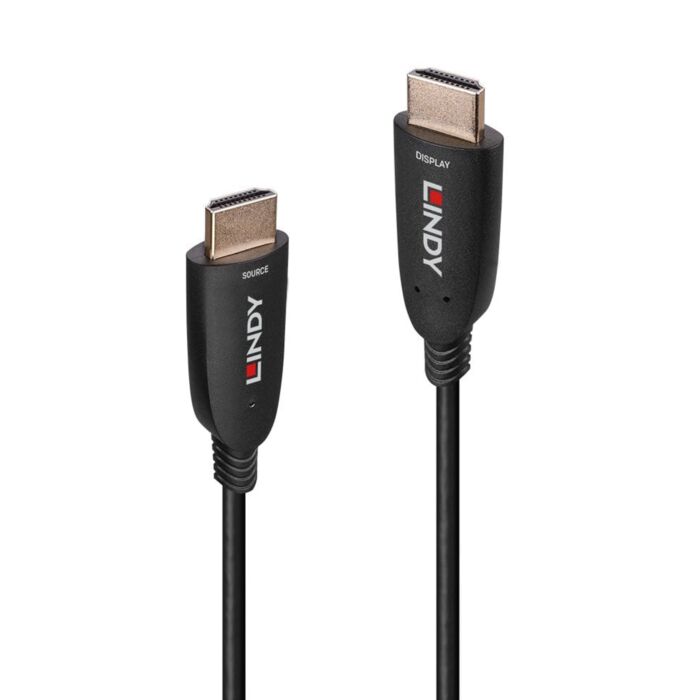

Lindy Ultra High Speed HDMI 2.1 Cable - Hybrid Fibre AOC

Designed for professional and demanding installations, this hybrid HDMI cable delivers consistent, high-speed data transfer over extended runs. The fibre-based architecture maintains signal integrity without the need for external boosters or repeaters, providing a streamlined solution for environments such as conference venues, digital signage setups, broadcast systems, and luxury home cinemas where long-distance, high-resolution connectivity is essential.

Wiring Notes

A fibre optic hybrid HDMI cable works by converting the electrical HDMI signal into light at the source end using a built-in chipset, transmitting it through optical fibres for high-speed, interference-free data transfer over long distances, and then converting it back to an electrical signal at the display end. The fibre handles the high-bandwidth video and audio (up to 8K60 at 48Gbps), while integrated copper wires manage low-speed data and power, allowing reliable performance over longer lengths without signal loss or the need for external boosters.

Why Lindy Cables?

Lindy cables are recognised globally for delivering consistent performance, durable design, and high-quality connectivity solutions across professional AV and IT applications.

• Proven expertise – Over 90 years of experience in AV and connectivity innovation
• Fibre optic hybrid technology – Advanced optical transmission ensures stable 8K HDMI performance over extended distances
• Engineered for professional use – Built for reliable operation in home cinema, commercial displays, digital signage, and complex AV installations

Technical Specifications

• Connector A: HDMI® Type A (Male)
• Connector B: HDMI® Type A (Male)
• Housing Material: PVC
• Connector Plating: Gold Plated
• Pin Construction: Gold Plated
• Pin Plating: Gold Plated
• Dimensions (approx.) WxDxH: HDMI® Connector: 20.2x50.5x11mm (0.8x1.99x0.43in)
• Supported Bandwidth: 48Gbps
• Maximum Resolution: 7680x4320@60Hz 4:2:0 10bit, 3840x2160@120Hz 4:4:4 10bit
• Nominal Attenuation: ≤10dB/km@850nm, ≤8dB/km@1300nm
• Minimum Bend Radius: 50mm (1.97in)
• Operating Temperature: -10°C - 60°C (14°F - 140°F)
• Storage Temperature: -20°C - 70°C (-4°F - 158°F)

Standards & Compliance

• RoHS certified
• REACH certified
• CE certified
• UKCA certified
• FCC certified
• California Proposition 65 certified

Part Numbers

• 38510 - Lindy Ultra High Speed HDMI 2.1 Cable - Hybrid Fibre AOC - 10m
• 38511 - Lindy Ultra High Speed HDMI 2.1 Cable - Hybrid Fibre AOC - 15m
• 38512 - Lindy Ultra High Speed HDMI 2.1 Cable - Hybrid Fibre AOC - 20m
• 38513 - Lindy Ultra High Speed HDMI 2.1 Cable - Hybrid Fibre AOC - 30m
• 38514 - Lindy Ultra High Speed HDMI 2.1 Cable - Hybrid Fibre AOC - 40m
• 38515 - Lindy Ultra High Speed HDMI 2.1 Cable - Hybrid Fibre AOC - 50m
• 38516 - Lindy Ultra High Speed HDMI 2.1 Cable - Hybrid Fibre AOC - 60m
• 38517 - Lindy Ultra High Speed HDMI 2.1 Cable - Hybrid Fibre AOC - 70m
• 38518 - Lindy Ultra High Speed HDMI 2.1 Cable - Hybrid Fibre AOC - 100m
