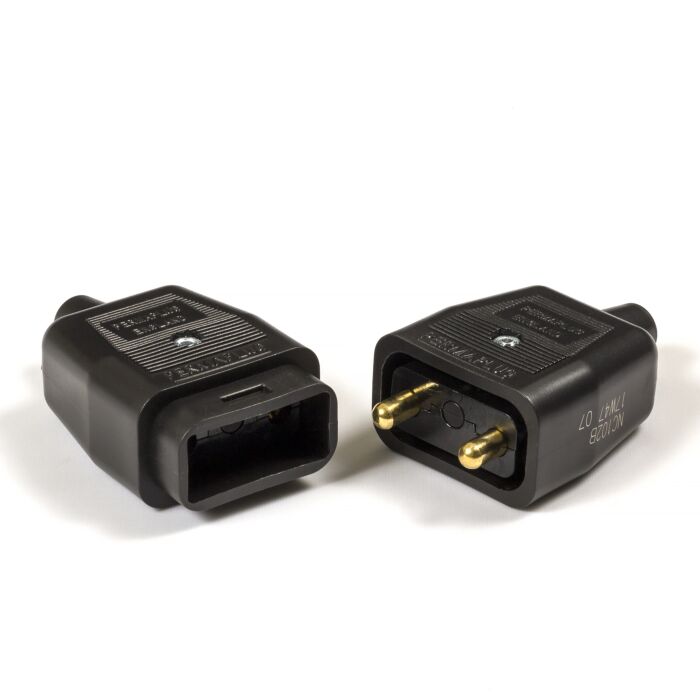

Masterplug 2p Pole Cable Mount BLACK NC102B-01 Inline Connector Rated At 10A

10amp coupler / joint from Masterplug. Ideal for power tools, DIY and workshop use. This product is certified to applicable British safety standards BS5733

• Heavy duty construction
• 10A plug and socket connection block
• Includes cord grips
• Two pin (reversible) and three pin (non-reversible) options available
• Ideal for outdoor power tools and lighting
• Maximum Load (Wound) - 10A: 2400 Watts, 240 Volts
• Height 24mm x Width 39.5mm x Depth 62.2mm (female), 61.7mm (male)

Important: This connector has been designed specifically for use with Class II 'double insulated' equipment. Ensure that the correct size cable is used (1.0mm is recommended).

**This connector must not be used with appliances which require an earth connection.

1. Remove fixing nuts and bolts on both plug and socket, push inserts from sleeves.
2. Prepare the cable
3. Fit sleeves to cable before making connections. Sleeve marked 'CONNECT TO MAINS' must be on the mains supply side.
4. Sleeve marked 'CONNECT TO APPLIANCE' must be on the cable from the appliance or equipment.
5. Pass cable through the cord grip.
6. Wire plug and socket terminals and tighten screws securely.
7. Tighten cord grip securely over cable outer sheath.
8. Reassemble inserts to sleeves then replace and tighten nuts and bolts.
