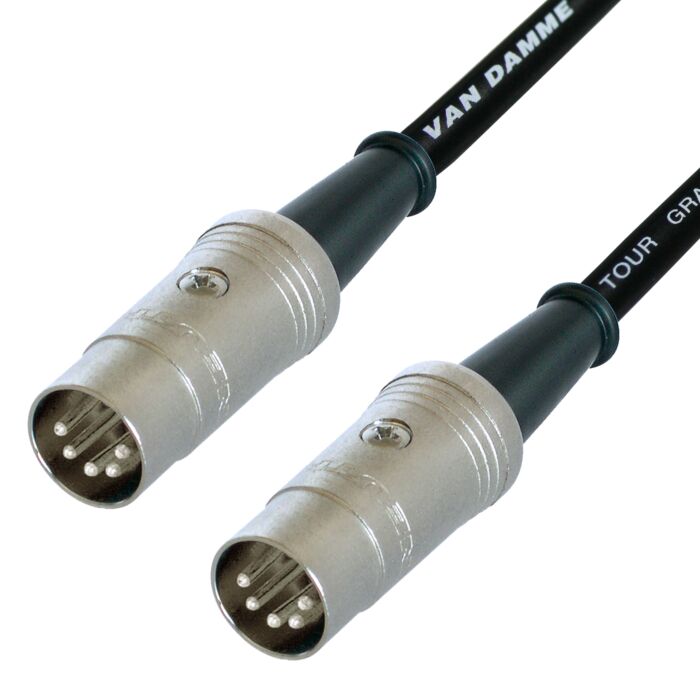

MIDI Lead. Flexible Van Damme cable. 5 Pin Din. Carries Phantom Power.
As low as
£12.77
In stock
SKU
NYS322*5-VDSQ-NYS322*5
Multibuy discounts calculated at checkout
Fully wired, durable and elegant. These midi leads are made with flexible Van Damme XKE Cable and terminated with Rean midi connectors. As the lead is fully wired it will carry 48v Phantom power as well as midi data. If phantom power is not required we have leads with only 3 pins wired HERE
Fully wired, durable and elegant. These midi leads are made with flexible Van Damme XKE Cable and terminated with Rean midi connectors. As the lead is fully wired it will carry 48v Phantom power as well as midi data. If phantom power is not required we have leads with only 3 pins wired HERE
- High quality silver plated REAN NYS322 5 Pin Dins
- Durable & Flexible Van Damme XKE cable
- Manufactured using 3.5% Silver Solder
The wiring is straight through, pin to pin so;
- Pin 1 to Pin1 ,
- Pin 2 to Pin 2
- etc
| Delivery Speed | Made to Order - Next Day Delivery Available |
|---|---|
| Cable Capacitance | Core to screen 95 pF/m nominal |
| Cable Resistance | Conductor <93 Ohm/Km |
| Cable Conductor | 7 x 0.08mm Bare Silver Plated UPOFC + 32 x 0.08mm Bare UPOFC |
| Cable Screening | - |
| Cable Jacket | Flexible PVC/Neoprene composite / Overall Diamter 6.15mm |
| Overall Diameter | - |
| Cable Brand | Van Damme |
| Application | Tour & Studio Grade |
| Contact Material | Silver Plated |
| Number of Contacts | 5 Pole |
| Multicore Core Count | 2 Way |
