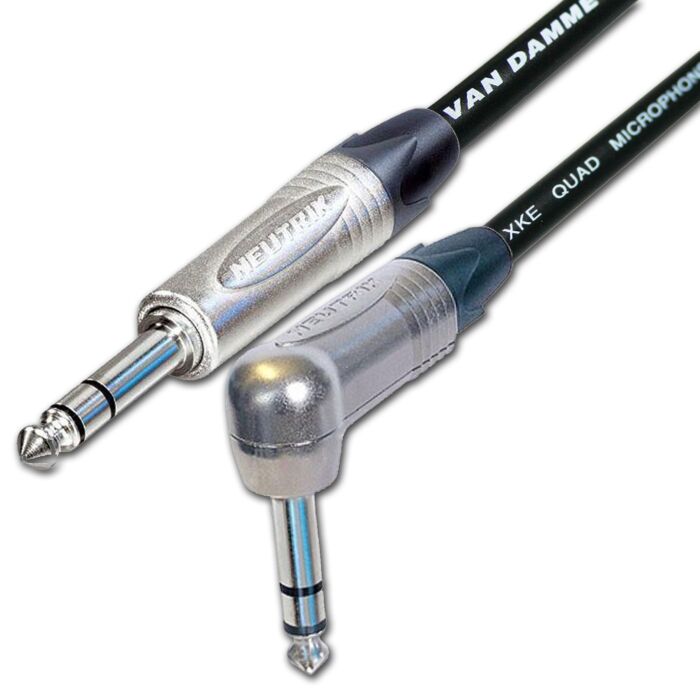

Van Damme STARQUAD Balanced or Stereo Angled ¼ Inch TRS Jack Lead. Neutrik NP3RX & NP3X
The next level in balanced cabling. Balanced leads minimise noise interference by using two twisted cores (1 x + & 1 x -). The signals are sent perfectly out of phase with one another and then re-inverted at the destination. The interference collected along the cable length is also then inverted, so put out of phase and made silent. Starquad leads use two cores per signal path (2 x + & 2 x -) all twisted around each other. This increases the surface area of the cable cores and means that noise is induced more evenly down the length.
Van Damme Starquad XKE balanced cable.
Neutrik NP3X & NP3RX TRS Jack connectors.
Manufactured using 4% silver solder.
"What are balanced cables"? Check out our Knowledge Blog
"What are the benefits of Starquad cable"? Check out our Knowledge Blog
The Truth behind Gold and Silver Connectors........
Silver is the better conductor however gold is highly resistant to corrosion so is favoured for its durability.
| Cable Capacitance | Core to screen 95 pF/m nominal |
|---|---|
| Cable Resistance | Conductor <93 Ohm/Km |
| Cable Conductor | 7 x 0.08mm Bare Silver Plated UPOFC + 32 x 0.08mm Bare UPOFC |
| Cable Screening | Type 128 x 0.10mm braided tinned oxygen free copper wire |
| Cable Jacket | Flexible PVC/Neoprene composite |
| Overall Diameter | Overall Diamter 6.15mm |
| Brand.... | Van Damme |
| Application.... | Tour & Studio Grade |
| Terminated with.... | TRS Jack to TRS Jack |
| Metal Type.... | Silver Plated |
| Poles | 3 Pole |
