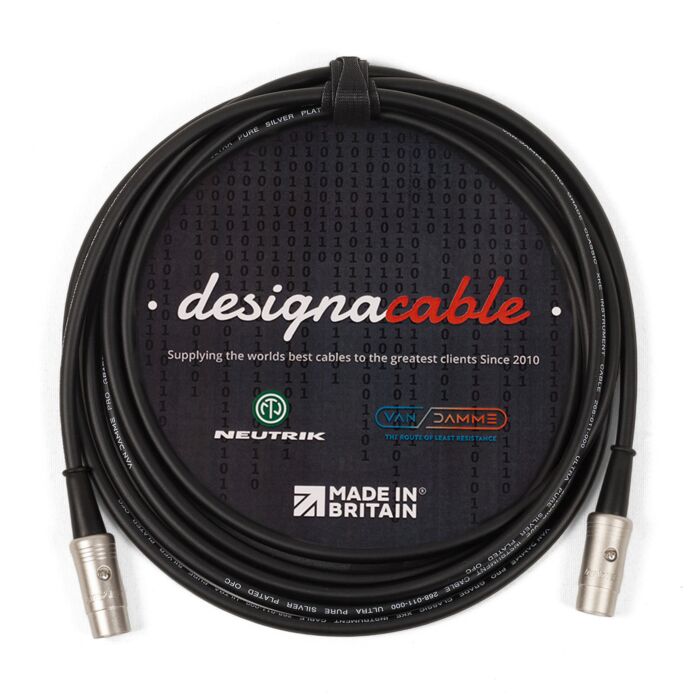

MIDI Lead. Flexible Van Damme cable. 5 Pin Din. No Phantom Power.
Durable and elegant midi leads made with flexible Van Damme XKE Cable and terminated with Rean midi connectors. These leads have only 3 pins wired so will not carry Phantom power. Leads that carry Phantom power are available HERE
Elegant and durable. This range of Midi leads comprising of Rean Midi connectors and Van Damme’s XKE cable suit any midi hook-up situation where phantom power is NOT needed. Ideal for daisy chaining synthesisers, keyboards, FX devices, etc or linking them to your computer. For midi leads that carry phantom power please see our other listings of ‘5 pin POWERED midi leads’. Available in a range of colours and lengths.
- High quality silver plated REAN NYS322 5 Pin Dins
- Durable & Flexible Van Damme XKE cable
- Manufactured using 4% Silver Solder
|Cable Capacitance||56 pF/m core to core|
|Cable Resistance||<85 ohm|
|Cable Conductor||7 x 0.10mm Silver Plated UPOFC + 21 x 0.10mm Bare UPOFC|
|Cable Jacket||Flexible PVC/Neoprene composite / Overall Diamter 6.5mm|
|Application....||Tour & Studio Grade|
|Terminated with....||5 Pin Din to 5 Pin Din|
|Metal Type....||Silver Plated|
|Core Count....||2 Way|
