Midi over XLR adapter cable, also works as a locking din style connection

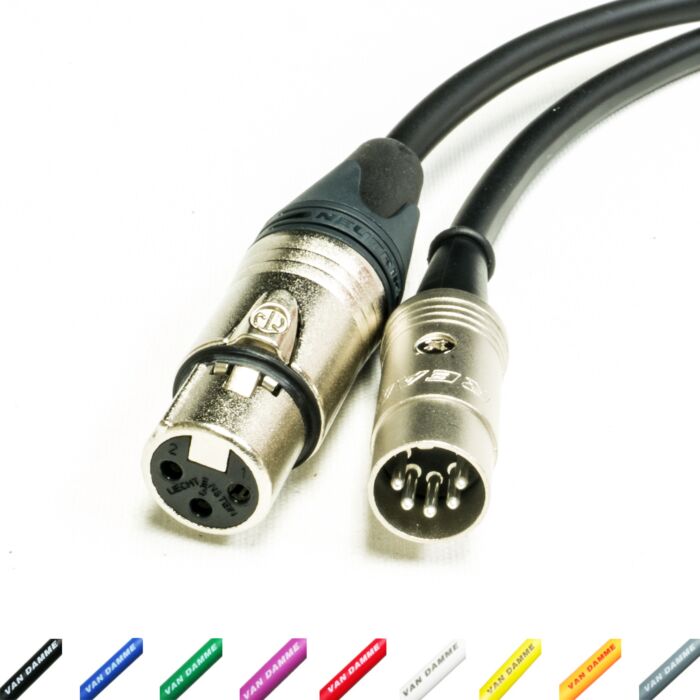

This cable converts a male 5 Pin Din to a Female XLR so that you can run midi over standard XLR cables, simply by clipping them together. These are also very handy if you want to have a locking connection on a rack panel, by using XLR chassis connectors
The male versions are also available, these will convert the XLR cable back to 5 Pin DIN
Delivery Speed | Made to Order - Next Day Delivery Available |
---|---|
Cable Capacitance | Core to screen 105pF/m |
Cable Resistance | Conductor Ohm/Km <85 |
Cable Conductor | Bare silver plated UPOFC - Stranding 7 x 0.10m / Bare UPOFC - Stranding 21 x 0.10mm |
Cable Screening | 80 x 0.10mm close lap spiral bare oxygen free copper wire |
Cable Jacket | Flexible PVC/Neoprene composite |
Overall Diameter | 6.35mm |
Cable Brand | Van Damme |
Application | Tour & Studio Grade |
Contact Material | Silver Plated |
Number of Contacts | 3 Pole |
