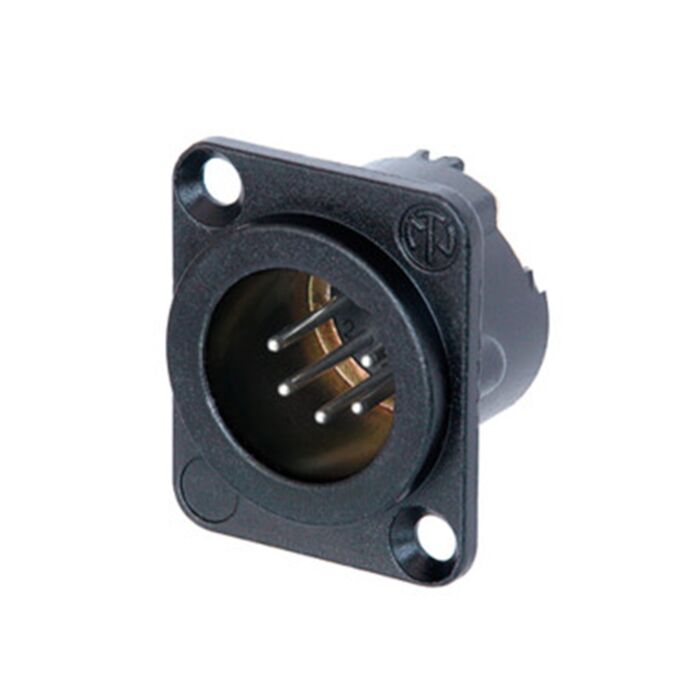

Neutrik 5 Pin NC5MD-LX-BAG Male XLR Chassis Connector
£10.72
In stock
We have 704 items in stock!
SKU
CHASSIS_NC5MD-LX-BAG
Multibuy discounts calculated at checkout
- Buy 5 for £10.18 each and save 5%
- Buy 10 for £9.65 each and save 10%
- Buy 15 for £9.11 each and save 15%
- Buy 20 for £8.58 each and save 20%
5 pole male receptacle, solder cups, black metal housing, silver contacts
The DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding.
5 pole male receptacle, solder cups, black metal housing, silver contacts
The DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding.
Features & Benefits
- All metal housing offers best overall RF protection and electromagnetic shielding.
- Duplex ground contact for excellent contact integrity between chassis and cable connector.
- Male connector's retention bar replaces plastic design with all metal version improving pull-out force.
- Larger solder contacts for easier termination.
- Optional connection to easily join pin1 to chassis ground.
- D-style housing provides installation compatibility with industry standard D mounting dimensions.
| Delivery Speed | Next Day delivery available if 'In Stock' |
|---|---|
| Mounting Method | Panel Mount - Solder |
| Series Range Name | Neutrik DLX Series |
| Contact Material | Silver Plated |
| Number of Contacts | 5 Pole |
| Manufacturer URL | Download Data Sheet |
