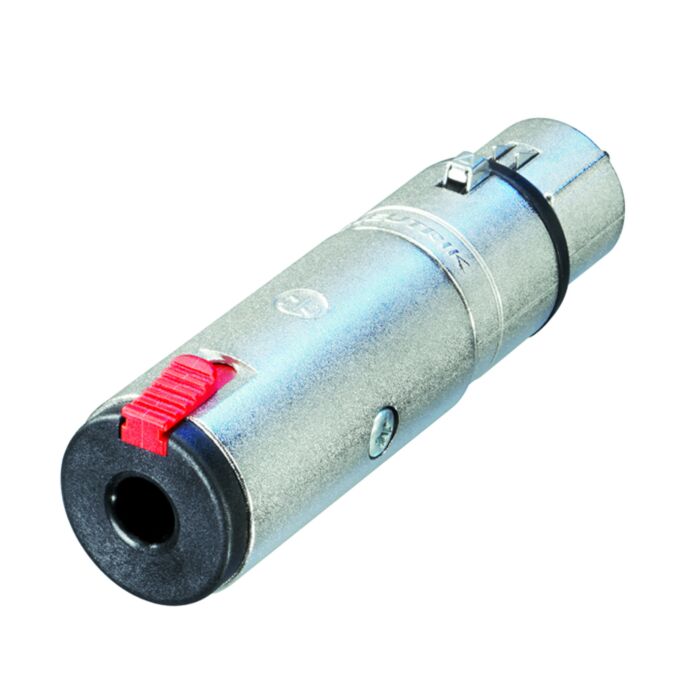

Neutrik NA3FJ 3 Pole XLR Female to Stereo Quarter locking Socket. Adaptor Converter

NA3FJ

3 pole XLR female - Stereo 1/4" locking jack (tip, ring, sleeve contact)

Features and Benefits

• Versatile, pre-wired and ready to use adapters to reliably interlock various connector systems
• Professional look and compact space saving design, based on the XX Series
• Rugged diecast shell for best reliability

Technical Information

Electrical

• Contact resistance - ≤ 3 mΩ (XLR)
• Contact resistance - ≤ 6 mΩ
• Dielectric strength - 1.5 kV dc / > 1 kVdc (XLR/Jack)
• Insulation resistance - > 2 GΩ

Mechanical

• Locking device - Latch lock

Material

• Contact plating - 2 µm Ag
• Contacts - Bronze (CuBe2) (jack)
• Insert - Polyamide (PA 6.6 30 % GR)
• Shell - Zinc diecast (ZnAl4Cu1)
• Shell plating - gal Cu/Ni

Environmental

• Temperature range - -20 °C to +65 °C
