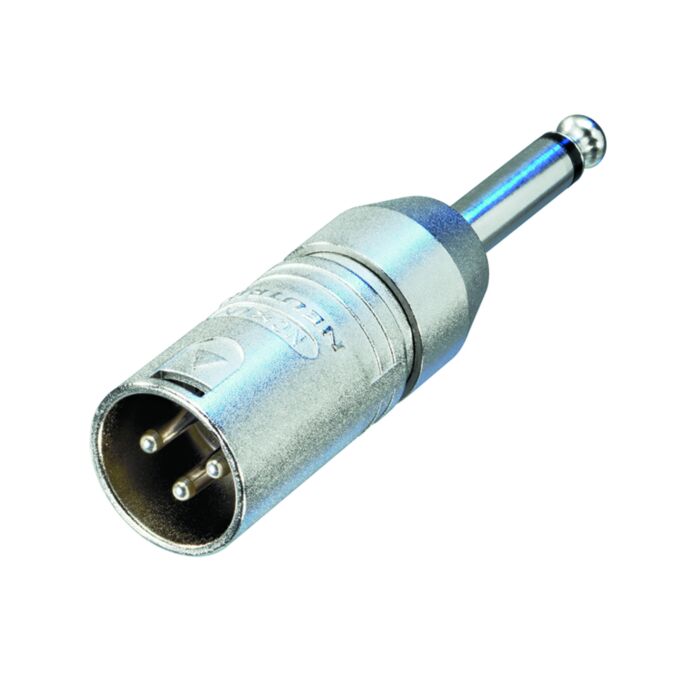

Neutrik NA2MP 3 Pin XLR Male to Mono Quarter Jack Plug. Audio Adaptor Convertor
£15.22
In stock
We have 39 items in stock!
SKU
ADAPTER_NA2MP
- Buy 10 for £14.46 each and save 5%
- Buy 20 for £13.70 each and save 10%
- Buy 50 for £12.94 each and save 15%
- Buy 100 for £12.18 each and save 20%
.jpg)
3 pole XLR male – Mono 1/4" plug (tip, sleeve contact)
3 pole XLR male – Mono 1/4" plug (tip, sleeve contact)
Wired according to IEC 268-12:
Pin 2: signal
Pin 1 and 3: connected to ground
Features and Benefits
- Versatile, pre-wired and ready to use adapters to reliably interlock various connector systems
- Professional look and compact space saving design, based on the X Series (XLR worldwide accepted standard)
- Rugged diecast shell for best reliability.
- Technical Information
Technical Spec
Electrical
- Contact resistance - ≤ 3 mΩ (XLR)
- Contact resistance - ≤ 6 mΩ
- Dielectric strength - 1.5 kV dc / > 1 kVdc (XLR/Plug)
- Insulation resistance - > 2 GΩ
Mechanical
- Wiring - according to IEC 268-12 pin 2 = signal, pin 1 and 3 connected to ground
- Locking device - Latch lock
Material
- Contact plating - 2 µm Ag over 2 µm Ni
- Contacts - Brass (CuZn39Pb3) (plug)
- Insert - Polyamide (PA 6.6 30 % GR)
- Shell - Zinc diecast (ZnAl4Cu1)
- Shell plating - gal Cu/Ni
Environmental
- Temperature range - -20 °C to +65 °C
| Delivery Speed | Next Day delivery available if 'In Stock' |
|---|---|
| Mounting Method | Cable Mount - Feedthrough |
| Series Range Name | Neutrik PX Series |
| Contact Material | Silver Plated |
| Number of Contacts | 3 Pole |
| Pack Quantity | Pack of 1 |
| Manufacturer URL | Download Data Sheet |
| Data Sheet URL | Download Data Sheet |
