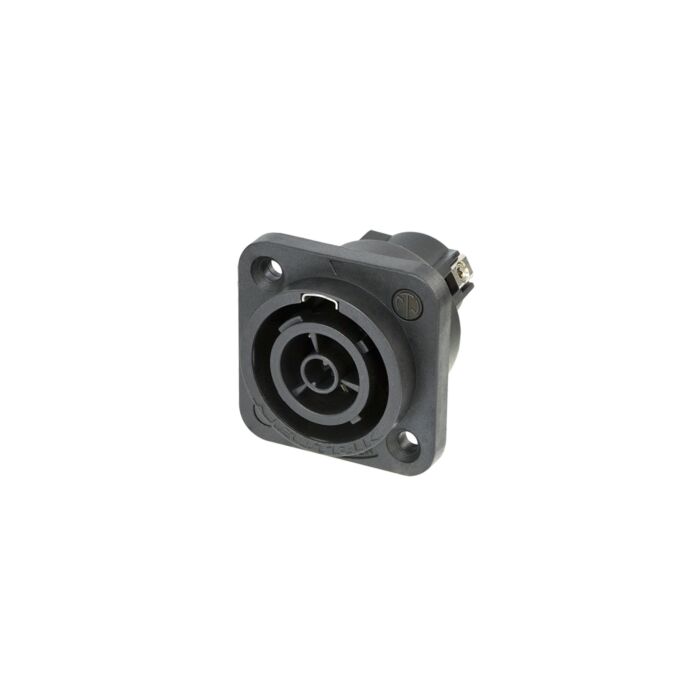

Neutrik NAC3FPX-ST-TOP. TOP Series AC Power. Female socket
£12.94
In stock
We have 376 items in stock!
SKU
CHASSIS_NAC3FPX-ST-TOP
Multibuy discounts calculated at checkout
- Buy 5 for £12.29 each and save 5%
- Buy 10 for £11.65 each and save 10%
- Buy 15 for £11.00 each and save 15%
- Buy 20 for £10.35 each and save 20%
Heavy duty sealed power connector for harsh and demanding environment
Appliance outlet connector, screw terminals
The powerCON TRUE1 TOP is a locking 16 A true mains connector for outdoor applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
The powerCON TRUE1 TOP is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.
Technical Info
- IP65, UL50E enclosure type4 rating in combination with SCNAC-FPX (mated or with closed cap)
- Uses high impact UV-resistant materials
- True mains connector with breaking capacity (CBC)
- Lockable 16 A single phase connector (USA: 20 A)
- Easy and reliable twist lock system
- Extremely robust and reliable
- Unique Neutrik cable retention
- ENEC certified according to IEC 60320
- UL498 certified
| Delivery Speed | Next Day delivery available if 'In Stock' |
|---|---|
| Connection Type | Neutrik True1 Powercon |
| Mounting Method | Panel Mount - Flat Tabs |
| Series Range Name | Neutrik TOP Series |
| Contact Material | Silver Plated |
| Number of Contacts | 3 Pole |
| Current Rating | 15 amps |
| Voltage Rating | 230-240v |
| IP Rating | IP65 |
| Pack Quantity | Pack of 1 |
| Manufacturer URL | Download Data Sheet |
| Data Sheet URL | Download Data Sheet |
