Neutrik NP3X-BAG Black Shell. Silver Pins. Quarter TRS 3 Pole Jack Plug Connector

NP3X-BAG

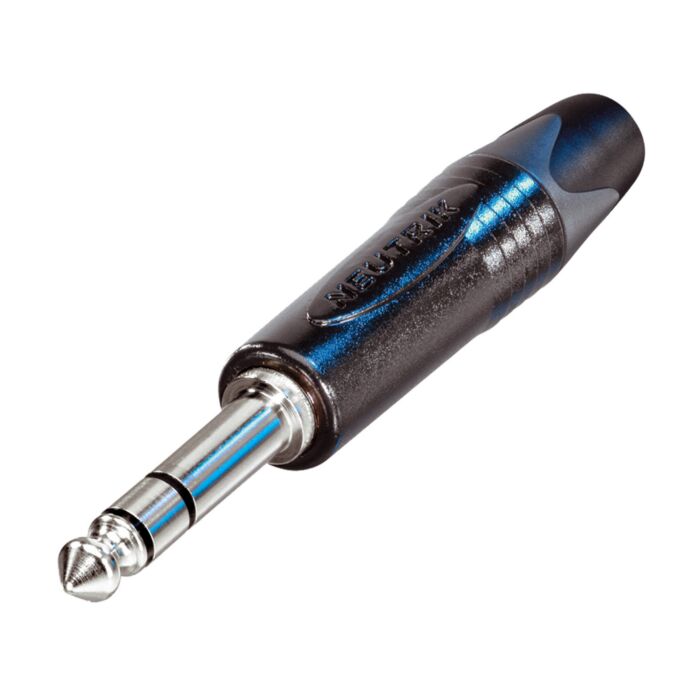

3 pole 1/4" professional phone plug, nickel contacts, black shell

The heavy duty professional phone plug series improves on the design of the existing C series by offering the thinnest available A-gauge 1/4" plug with unique Neutrik chuck type strain relief on the market. The slimline shell with a width of 14.5 mm meets the most recent requirements for highest density jackfields (15.88 mm jack pitch).

The precise machined one-piece tip contact without rivets makes it unique and avoids hook up in a socket or break off the tip.

The Plug X Series serves all applications such as guitar applications, audio cables, snakes, speakers, amplifiers and mixing desks.

Features & Benefits

• Extra slim 1/4" plug for highest packing density
• Robust diecast shell in stylish design
• Proven chuck type strain relief for reliable cable retention
• Sleek design for best handling convenience
• Precision machined one-piece contacts - avoid hook up of tip contact

Technical Spec

Electrical

• Contact resistance - depends on mating connector mΩ
• Dielectric strength - 1 kVdc
• Insulation resistance - > 2 GΩ (initial)
• Rated current per contact - depends on mating connector A
• Rated voltage - < 50 V

Mechanical

• Cable O.D. - 4 - 7 mm
• Lifetime - > 1000 mating cycles
• Wiresize - 1 mm²
• Wiresize - 18 AWG
• Wiring - Solder contacts

Material

• Bushing - Polyacetal (POM) + PU
• Contact plating - 2 µm Ni (Su)
• Contacts - Brass (CuZn39Pb3)
• Insert - Polyamide (PA 6.6 30 % GR)
• Shell - Zinc diecast (ZnAl4Cu1)
• Shell plating - Black chromium
• Strain relief - Polyacetal (POM)

Environmental

• Standard compliance - IEC 60603-11 / EIA RS-453
• Solderability - Complies with IEC 68-2-20
• Temperature range - -20 °C to +65 °C
