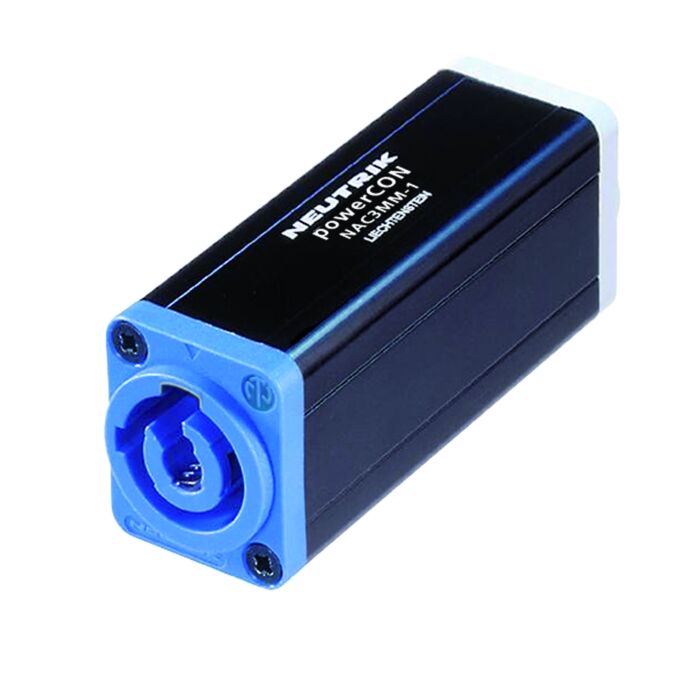

Neutrik NAC3MM-1 PowerCON NAC3MPA-1 (in) to NAC3MPB-1 (out), Coupler Link
- Buy 10 for £18.71 each and save 5%
- Buy 20 for £17.72 each and save 10%
- Buy 50 for £16.74 each and save 15%
- Buy 100 for £15.75 each and save 20%
PowerCON NAC3MPA-1 (power in) - powerCON NAC3MPB-1 (power out), coupler for linking cables
NAC3MM-1
PowerCON NAC3MPA-1 (power in) - powerCON NAC3MPB-1 (power out), coupler for linking cables
powerCON 20 A
The powerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
Attention: The powerCON is a connector without breaking capacity, i.e. the powerCON should not be connected or disconnected under load or live!
Technical Information
Electrical
Contact resistance - ≤ 3 mΩ
Dielectric strength - 4 kVdc
Insulation resistance - > 0.1 GΩ (after damp heat test IEC 68-2-30)
Rated current per contact - 20 A rms
Rated voltage - 250 V ac
Mechanical
Lifetime - > 1000 mating cycles
Locking device - Quick Lock
Material
Contact plating - 2 µm Ag
Locking element - Steel Ck67
Shell - Polyamide (PA 6.6 30 % GR)
Contacts - Bronze (CuNi1Si0.2)
Environmental
Flammability - UL 94 V-0
Protection class - IP 20 (mated)
Safety Requirements - EN/IEC 61984
Solderability - Complies with IEC 68-2-20
Temperature range - -30 °C to +80 °C
Delivery Speed | Next Day delivery available if 'In Stock' |
---|---|
Mounting Method | Cable Mount - Feedthrough |
Contact Material | Silver Plated |
Number of Contacts | 3 Pole |
Pack Quantity | Pack of 1 |
Manufacturer URL | Download Data Sheet |
Data Sheet URL | Download Data Sheet |
