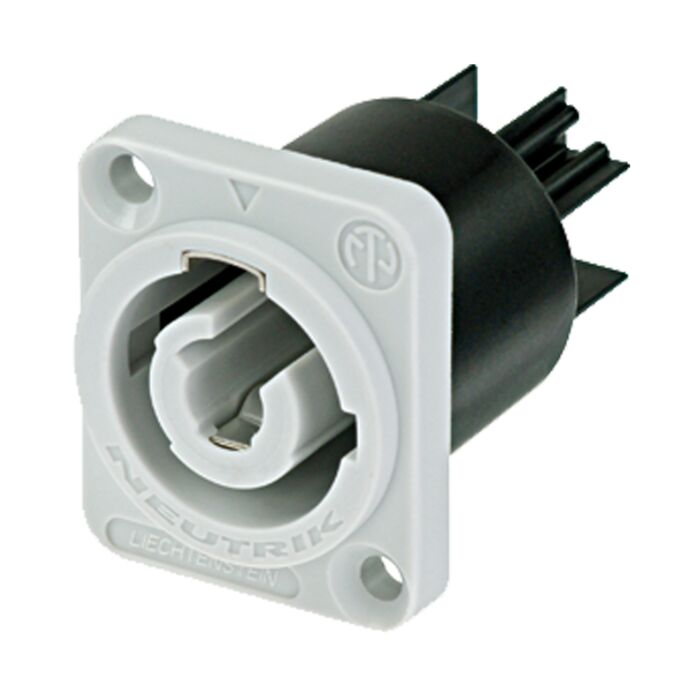

Neutrik NAC3MPB-1 Output Powercon Chassis Panel Mount. 240v, 20 amp Rated

£2.70
In stock
We have 30 items in stock!
SKU
CHASSIS_NAC3MPB-1-(Output.Grey)
  • Buy 10 for £2.57 each and save 5%
  • Buy 20 for £2.43 each and save 10%
  • Buy 50 for £2.30 each and save 15%
  • Buy 100 for £2.16 each and save 20%

The powerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

NAC3MPB-1

Chassis connector, power-out, 3/16'' flat tab terminals, grey



Attention: The powerCON is a connector without breaking capacity, i.e. the powerCON should not be connected or disconnected under load or live!



Features & Benefits

  • Locking 20 A / 250 V ac appliance coupler
  • 3 contacts for line, neutral and premating safety ground
  • Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
  • Fast and easy twist lock latching system
  • Extremely robust and reliable
  • Ergonomic design
  • User friendly latch design for easy handling
  • UL, cUL recognized components
    VDE certified
  • Branded with unique hologram - guarantees genuine and authentic Neutrik product



Title - NAC3MPB-1

Gender - male



Electrical

Contact resistance - ≤ 3 mΩ

Dielectric strength - 4 kVdc / 2.8 kVac

Insulation resistance - > 0.1 GΩ (after damp heat test IEC 68-2-30)

Number of electronical contacts - 2 + PE

Rated current per contact - 20 A rms

Rated voltage - 250 V ac



Mechanical

Lifetime - > 1000 mating cycles

Locking device - Quick Lock

Mounting direction - Front mounting

Chassis shape - D



Material

Contact plating - 2 µm Ag

Locking element - Steel Ck67

Shell - Polyamide (PA 6.6 30 % GR)

Contacts - Bronze (CuNi1Si0.2)



Environmental

Flammability - UL 94 V-0

Temperature range - -30 °C to +80 °C

Product specific

Coding - B-type for power outlet (colour coding gray)

More Information
Mains Connector Type Powercon, Surface Panel Mount
Manufacturer Neutrik
Metal Type.... Gold Plated
Poles 3 Pole
