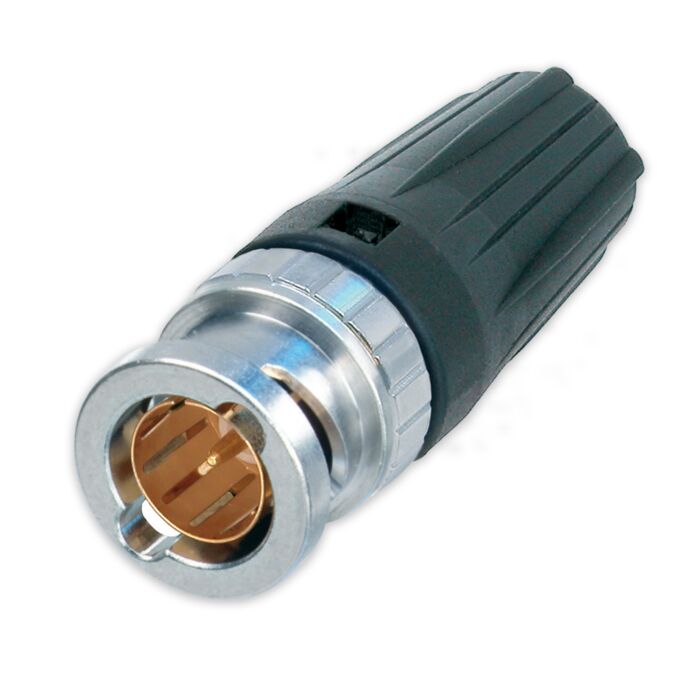

Neutrik NBNC75BLP7 Modular BNC Connector RG59

£2.50
  • Buy 10 for £2.27 each and save 10%
  • Buy 20 for £2.17 each and save 14%
  • Buy 50 for £2.08 each and save 17%
  • Buy 100 for £2.00 each and save 20%

Quick Overview

A High Quality modular BNC connector from Neutrik, easy to assemble and ultra duable. Perfect for onsite CCTV applications.

Availability: In stock

Check Prime Stock
Ship to: Worldwide
  • Black
  • Red
  • Blue
  • Green
  • Yellow
  • Orange
  • Purple
  • Brown
  • Grey
  • White

* Required Fields

£2.50

Details

NBNC75BLP7
The rearTWIST BNC cable connector offers a true 75 Ω design and is perfectly suitable for HD applications.
The patented rearTWIST boot guarantees easy access even in high density applications and offers color coding.
Suitable cables:
Belden 8241, CAE KX6A, Canare LV-61S, Cordial CVI (CVM) 06-37, CommScope 5563, Draka 0.6/3.7, Draka 0.6L/3.7, Proel HPC 805, RG59B/U, Sommer 600-0051 (M,L,S), Sommer 600-0054 (M,L,S), Klotz V06/37, Nexans HF 75 0,6/3,7 2YCY
Crimp size:
Pin: 1.6 mm (square)
Shield: 6.47 mm (hex)
Features & Benefits
“rearTWIST Principle” locking/unlocking using the easily accessible soft touch boot (Patent DE 100 48507)
Ideal for recessed bulkheads where access to the “head” of the connector might be an issue. These connectors turn from the back and not the front.
True 75 Ω design meets the stringent HDTV / DVD requirements
Leading area: Avoids tilting due to side forces to protect contacts from deformation. Guarantees a lifetime of min. 1000 mating cycles!
Snug-fit center pin insert provides tactile feedback
Shield and jacket crimp technology prevents the problem of an exposed grounding braid on cable assemblies
Excellent cable protection and retention
Precise Swiss machined brass parts for outstanding durability
Accessories include color coded boots in 10 standard colors, crimp tool and dies

Additional Information

Connector Type BNC
Mains Connector Type No
Manufacturer Neutrik
Housing Type N/A
Metal Type.... No
Poles 2 Pole
Current Rating (amps) N/A
Works with.... No
