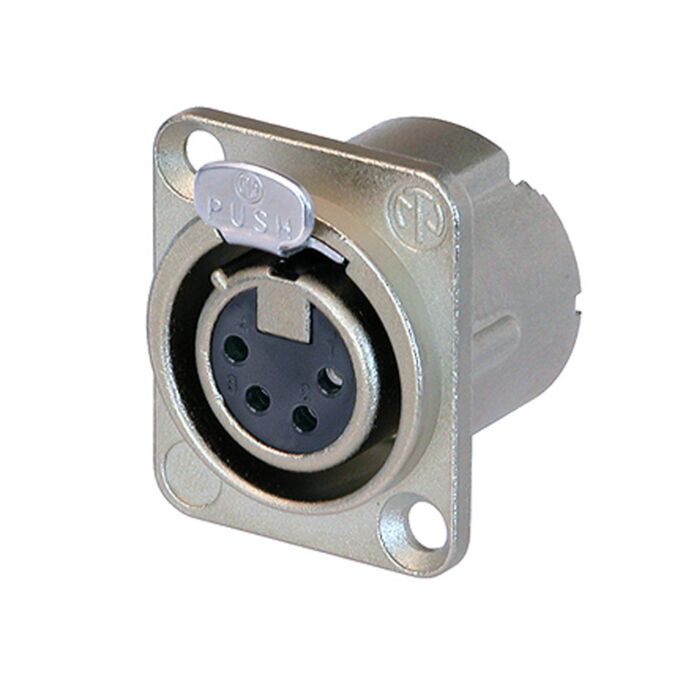

Neutrik NC4FD-LX Female 4 pin XLR Chassis Panel Mount. Silver Contacts
- Buy 10 for £6.51 each and save 5%
- Buy 20 for £6.17 each and save 10%
- Buy 50 for £5.82 each and save 15%
- Buy 100 for £5.48 each and save 20%
4 pole female receptacle, solder cups, Nickel housing, silver contacts
The DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding
- All metal housing offers best overall RF protection and electromagnetic shielding
- Duplex ground contact for excellent contact integrity between chassis and cable connector
- Female contact incorporates a solder barrier to prevent solder running into the contact mating area
- Larger solder contacts for easier termination
- Optional connection to easily join pin1 to chassis ground
- D-style housing provides installation compatibility with industry standard D mounting dimensions
Connection Type - XLR
Gender - female
Capacitance between contacts - ≤ 7 pF
Contact resistance - ≤ 5 mΩ
Dielectric strength - 1,5 kVdc
Insulation resistance - > 10 GΩ (initial)
Rated current per contact - 10 A
Rated voltage - < 50 V
Insertion force - ≤ 20 N
Withdrawal force - ≤ 20 N
Lifetime - > 1000 mating cycles
Wiresize - max. 1.5 mm²
Wiresize - max. 16 AWG
Wiring - Solder contacts
Locking device - Latch lock
Chassis shape - D
Contact plating - 2 µm Ag over 2 µm Ni
Contacts - Brass (CuZn39Pb3)
Insert - PA66
Locking element - Steel Ck67
Shell - Zinc diecast (ZnAl4Cu1)
Shell plating - Nickel
Flammability - UL 94 V-0
Standard compliance - IEC 61076-2-103
Protection class - IP 40
Solderability - Complies with IEC 68-2-20
Temperature range - -30 °C to +80 °C
Delivery Speed | Next Day delivery available if 'In Stock' |
---|---|
Mounting Method | Panel Mount - Solder |
Series Range Name | Neutrik DLX Series |
Contact Material | Silver Plated |
Number of Contacts | 4 Pole |
Pack Quantity | Pack of 1 |
