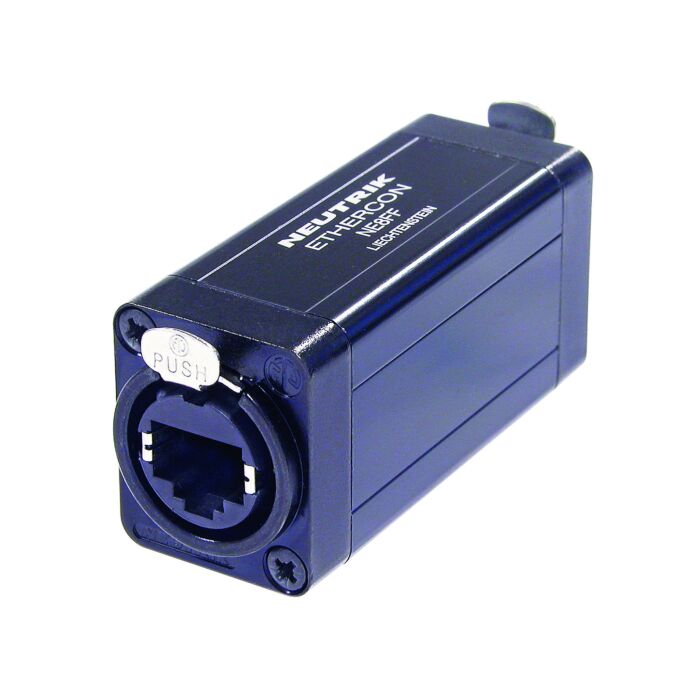

Neutrik NE8FF etherCON RJ45 Feedthrough Coupler Adaptor. Cable Extensions

NE8FF

EtherCON RJ45 feedthrough coupler for cable extensions

Features & Benefits

• Accommodates NE8MC* or any standard RJ45 plug
• The adapter offers the approved latch lock system
• The D shape adapters are problem solvers for various intermating problems for professional and semi-professional applications

Technical Information

Electrical

• Contact resistance - < 10 mΩ
• Dielectric strength - 1 kVdc
• Frequency range - 1 - 100 MHz
• Insulation resistance - > 0.5 GΩ
• Rated current per contact - 1,5 A
• Rated voltage - < 50 V
• Standard compliance - TIA/EIA 586B, IEC11801

Mechanical

• Insertion force - ≤ 20 N
• Withdrawal force - ≤ 20 N
• Lifetime - > 1000 mating cycles
• Locking device - Latch lock

Material

• Contact plating - 0.2 µm Au over Ni plating
• Contacts - Bronze (CuSn8)
• Insert - PBTP 15 % GR
• Shell - AlMgSi 0.5, black plated
• Strain relief - CuZn35Pb2, Tin plated

Environmental

• Flammability - UL 94 HB
• Temperature range - -30 °C to +80 °C
