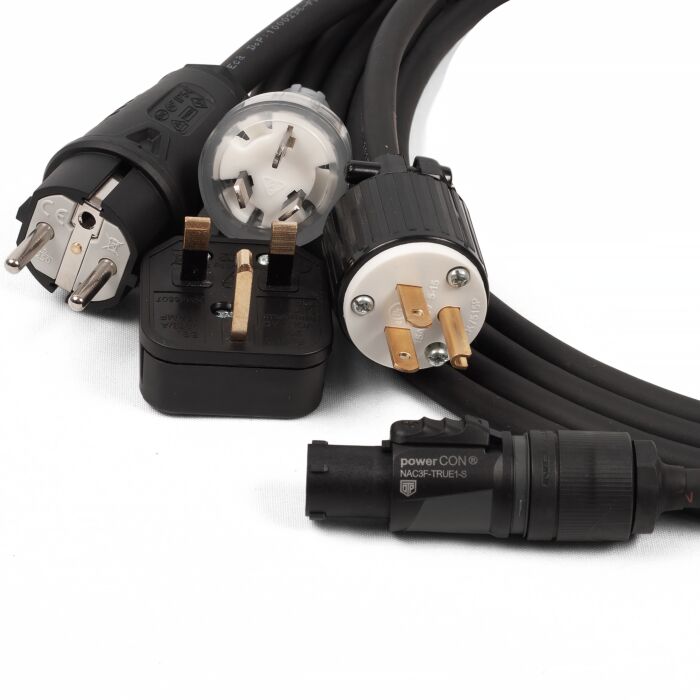

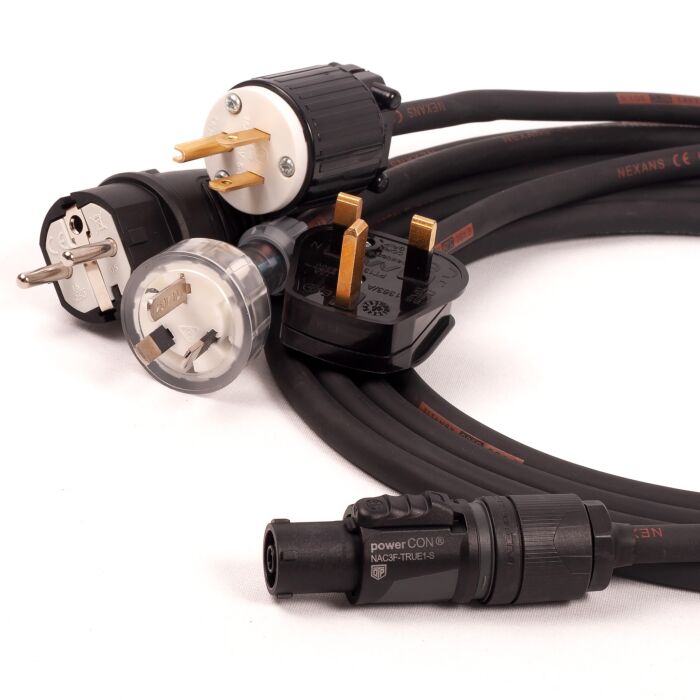

Neutrik True 1 Powercon Female to Mains Plug Link Lead. Tough H07RN-F NAC3FX-W. UK. USA. EU. AUS Plugs.
As low as
£20.66
In stock
SKU
NAC3FX-W-H073x1.5mm-PLUG
Multibuy discounts calculated at checkout
A hard wearing cable ideal for linking mains power to racks, active speakers, amplifiers and devices with a powercon TRUE 1 input. When mated the TRUE 1 Connector is rated as IP65 so is “watertight and dust proof”. This is a 16 amp max 230v lead manufactured with 1.5mm H07rn-f Tough Rubber mains cable. H07 cable is made from Tough Rubber and is highly flexible, it can handle the harshest of environments. Weather, oil, grease, mechanical and thermal stresses do not pose a problem for this cable.
A hard wearing cable ideal for linking mains power to racks, active speakers, amplifiers and devices with a powercon TRUE 1 input. When mated the TRUE 1 Connector is rated as IP65 so is “watertight and dust proof”. This is a 16 amp max 230v lead manufactured with 1.5mm H07rn-f Tough Rubber mains cable. H07 cable is made from Tough Rubber and is highly flexible, it can handle the harshest of environments. Weather, oil, grease, mechanical and thermal stresses do not pose a problem for this cable.
This Neutrik powerCON TRUE1 female to mains plug link lead is designed for professional stage lighting, AV systems, and event power distribution. It uses a genuine Neutrik NAC3F-TRUE1-S powerCON TRUE1 female connector combined with heavy-duty Nexans Titanex H07RN-F 3G1.5mm² rubber cable for reliable power connections in demanding environments.
The powerCON TRUE1 locking connector system provides a secure twist-lock mains connection with breaking capacity, making it ideal for touring rigs, lighting fixtures, and professional installations.
Available with UK, EU, USA, and Australian mains plug options for global compatibility.
Why Nexans Titanex Cable?
This lead is manufactured using Nexans Titanex H07RN-F 3G1.5mm² rubber cable, widely used in professional power distribution.
- Highly flexible heavy-duty rubber cable
- Excellent abrasion and mechanical resistance
- Suitable for indoor and outdoor environments
- Ideal for touring, stage production, and event power systems
Why Neutrik Connectors?
Neutrik is the industry standard for professional audio, lighting, and power connectors.
- Secure twist-lock mains connection
- Breaking capacity (connect/disconnect under load)
- Robust design for touring and stage environments
- Reliable power distribution for lighting and AV equipment
Standards & Compliance
- H07RN-F harmonised cable standard (EN 50525-2-21)
- IEC / EN 60320 power connector standards
- UL recognised components (Neutrik TRUE1 connectors)
- RoHS compliant materials
- CE compliant components
Technical Specifications
Connector
- Connector Model: Neutrik NAC3F-TRUE1-S powerCON TRUE1 Female (locking)
- Rated Current: 16A
- Rated Voltage: 250V AC
- Protection Rating: IP65 when mated / IP44 when unmated
- Cable OD Range: 6 – 12 mm
- Breaking Capacity: Suitable for connect / disconnect under load
Cable
- Cable Type: Nexans Titanex H07RN-F 3G1.5mm² (3 core including earth)
- Conductor: Fine stranded copper
- Insulation Material: EPR rubber
- Sheath Material: Heavy-duty rubber
- Temperature Range: -25°C to +60°C (fixed) / -15°C to +60°C (flexing)
- Outer Diameter: approx. 9 – 11 mm
- Maximum Current: 16A
- Maximum Voltage: 250V AC
- Frequency: 50 / 60 Hz
Available Mains Plug Options
- HDPT13B-01 – UK BS 1363 fused mains plug
- 0521-S (PCE) – European CEE 7/7 Schuko plug
- STK221-3 – NEMA 5-15P plug (USA)
- YD-060P – AS/NZS 3112 Australian mains plug
| Delivery Speed | Made to Order - Next Day Delivery Available |
|---|---|
| Cable Capacitance | - |
| Cable Resistance | - |
| Cable Conductor | - |
| Cable Screening | - |
| Cable Jacket | - |
| Overall Diameter | - |
| Cable Brand | TITANEX |
| Application | Tour & Studio Grade |
| Contact Material | Gold Plated |
| Number of Contacts | 3 Pole |
