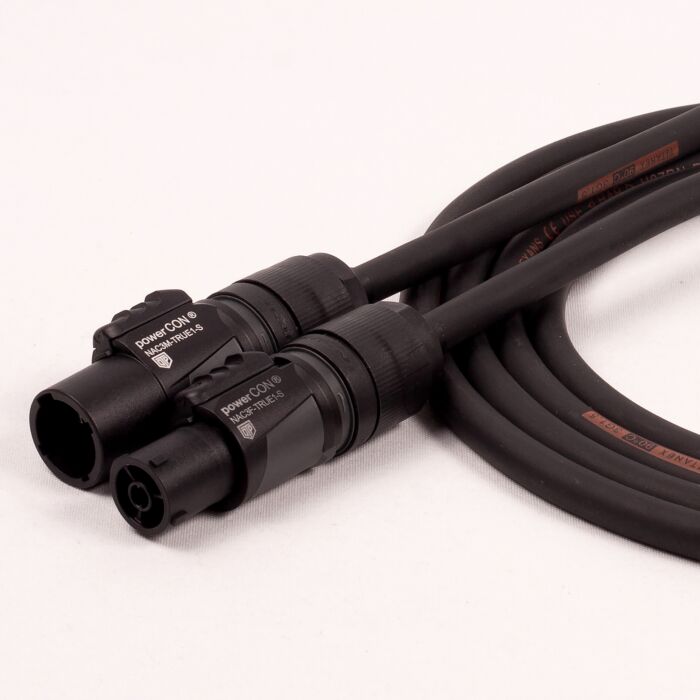

Neutrik True 1 Powercon Male to Female Link Lead. 2.5mm H07RN-F NAC3MX-W to NAC3FX-W

• Cable conductor size directly affects current carrying capacity, voltage drop and mechanical durability.
• 1.5 mm² cable is commonly used for standard 16A power distribution and shorter link runs.
• 2.5 mm² cable provides increased current capacity and reduced voltage drop over longer distances.
• Thicker conductors offer improved robustness under repeated flexing and heavy-duty use.
• In professional touring and event environments, 2.5 mm² cable is often preferred for its additional headroom and durability.



Why Nexans Titanex Cable?

• Enhanced durability for touring, site and outdoor use
• Excellent abrasion, impact, oil and weather resistance
• Maintains flexibility in low temperatures
• Suitable for repeated deployment and heavy mechanical stress



Why Neutrik Connectors?

• Neutrik connectors are the industry standard
• Secure locking design prevents accidental disconnection
• Reliable electrical contact with high current capacity
• Long-term mechanical durability
• Rated for safe connect and disconnect under load

Technical Specifications

• Conductors – 3 × 2.5 mm²
• Conductor Material – Stranded copper
• Sheath – Heavy-duty rubber compound
• Connector A – Neutrik NAC3MX-TRUE1-S (powerCON TRUE1 Male)
• Connector B – Neutrik NAC3FX-TRUE1-S (powerCON TRUE1 Female)
• Voltage Rating – 230 V (application dependent)
• Current Rating – 16 A+ (application dependent)

Standards Compliance

• Neutrik connectors compliant with relevant IEC/EN standards
• Suitable for professional lighting, audio and event power linking
• Assembled in accordance with professional wiring conventions
• REACH compliant materials



Part Numbers

Cable – Nexans Titanex H07RN-F 3 × 2.5 mm² - 10055524 - H07RN-F 3G2,5

Connector A – Neutrik NAC3MX-TRUE1-S

Connector B – Neutrik NAC3FX-TRUE1-S
