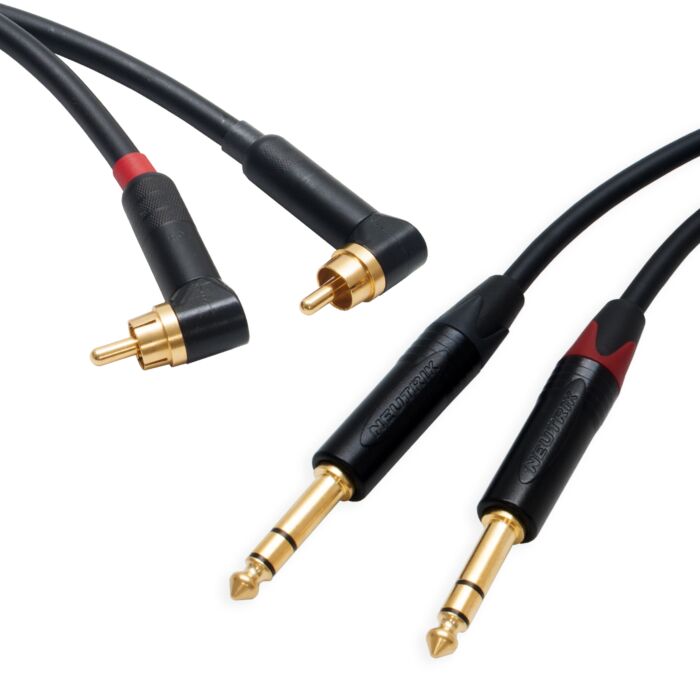

Pseudo Balanced Angled Phono RCA to TRS Jack Lead (PAIR) Van Damme Cable
**Sold as a stereo pair with one cable marked with ‘Red’ to identify it as the ‘Right Channel’
These leads are cleverly wired to minimize noise interference which is inherent when connecting unbalanced equipment to balanced equipment. We have used the world renowned Van Damme Starquad cable with industry standard Neutrik and Switchcraft Gold Plated connectors. These cables look and sound great. All terminations are made with a 4% silver solder.
These high quality cables are wired to our own specification, with the screen only being connected on one side of the cable. The world-wide debate of which side should be left floating is ongoing and will likely never be resolved. On these leads we have left the screen un-connected at the TRS end. This eliminates the risk of induced hum and noise (ground loops) from the screen. The unused Ring inside the TRS Jack is wired to the screen inside the RCA/Jack, this reduces unwanted noise and signal degradation.
If you would prefer the leads to be wired to your own specification, to keep in line with your own grounding scheme then please do not hesitate to contact us. We are more than happy to change the wiring to suit.
An excellent resource for understanding ground connections in audio cables can be found on the ‘RANE’ website.
|Cable Capacitance||Core to core pF/m 50 Nomina|
|Cable Resistance||Ohm/Km <95|
|Cable Conductor||Material Bare silver plated ultra pure oxygen free copper wire|
|Cable Jacket||Material Flexible PVC/Neoprene composite RAL 9005 Jet Black|
|Application....||Tour & Studio Grade|
|Metal Type....||Gold Plated|
|Core Count....||2 Way|
