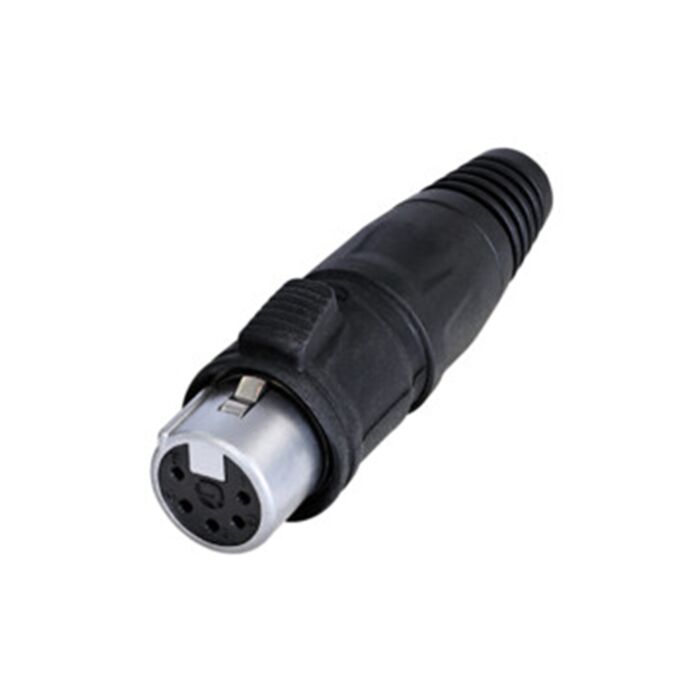

REAN RCX5F-Z-000-0 5 Pin Female XLR IP65 Cable Connector

Features & Benefits

• IP65 rating provides outdoor protection under mated condition
• Chrome & Black plated with fashionable finish and better abrasion performance
• UL94 V-0 rated materials

Technical Information

Title - RCX5F-Z

Connection Type - XLR

Gender - female

Electrical

• Contact resistance - ≤ 5 mΩ
• Dielectric strength - 1,5 kVdc
• Insulation resistance - > 10 GΩ (Initial)
• Rated current per contact - 16 A
• Rated voltage - < 50 V

Mechanical

• Cable O.D. - 5.0 - 8.0 mm
• Insertion force - ≤60 N
• Withdrawal force - ≤60 N
• Lifetime - > 1000 cycles
• Wiresize - Max 1.5 mm2
• Wiresize - Max 16 AWG
• Wiring - Solder contacts
• Locking device - Latch lock

Material

• Bushing - Polyamide
• Contact plating - Tin (-000 & - 001) / AU (-002)
• Contacts - Bronze
• Insert - Polyamide (UL94-V0)
• Locking element - Zinc diecast (latch)
• Shell - Zinc diecast
• Shell plating - Chrome (-000) / Black (-001 & -002)
• Strain relief - Polyamide
• Sealing jacket - Rubber

Environmental

• Flammability UL 94-V0
• Protection class IP65 (Mated)
• Standard compliance IEC 61076-2-103
• Solderability Complies with IEC 68-2-20
• Temperature range -20 °C to +70 °C
