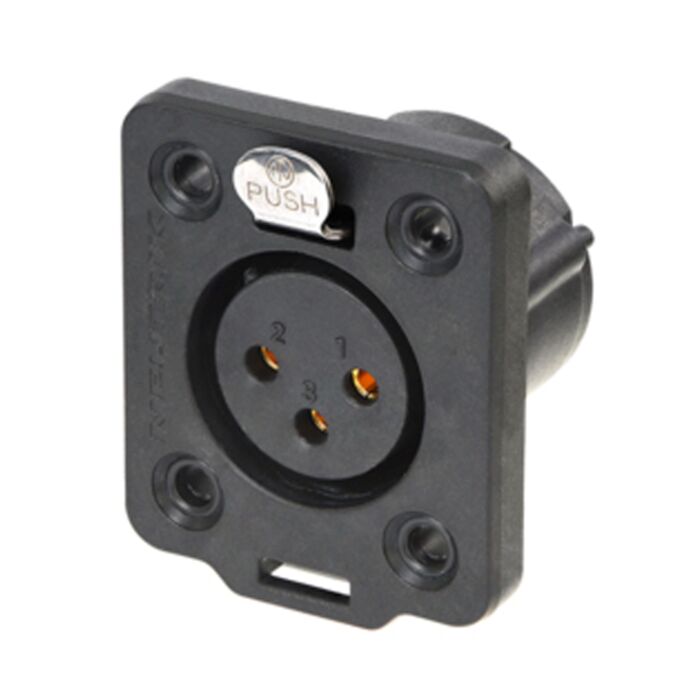

Neutrik 3 Pin NC3FDX-TOP Female XLR Chassis Connector. IP65 & UL50E Protection. Outdoor

Features & Benefits

• Heavy-duty sealed XLR connector range for harsh and demanding environment
• Outdoor protection according to IP65 and UL50E (in combination with a TOP range counterpart)
• Uses high impact UV-resistant materials
• Maintains sealing when in use and when disconnected

Technical Information

• Title - NC3FDX-TOP
• Connection Type - XLR
• Gender - female

Electrical

• Capacitance between contacts - ≤ 4 pF
• Contact resistance - ≤ 5 mΩ
• Dielectric strength - 1,5 kVdc
• Insulation resistance - > 10 GΩ (initial)
• Rated current per contact - 16 A
• Rated voltage - < 50 V

Mechanical

• Insertion force - ≤ 20 N
• Withdrawal force - ≤ 20 N
• Lifetime - > 5000 mating cycles
• Wiring - Solder contacts
• Locking device - Latch lock
• Mounting direction - Front mounting
• Chassis shape - D

Material

• Contact plating - 0.2 µm Au over 2 µm Ni
• Contacts - Brass (CuZn39Pb3)
• Insert - Polyamide (PA 6.6 30 % GR)
• Locking element - Stainless steel
• Gasket - TPE
• Shell - Polyamide (PA 6.6 30 % GR)

Environmental

• Flammability - UL94 V-0
• Standard compliance - IEC 61076-2-103
• Protection class - IP65, UL50E enclosure type 4 (mated or sealing cap closed)
• Solderability - Complies with IEC 68-2-20
• Temperature range - -30 °C to +80 °C
