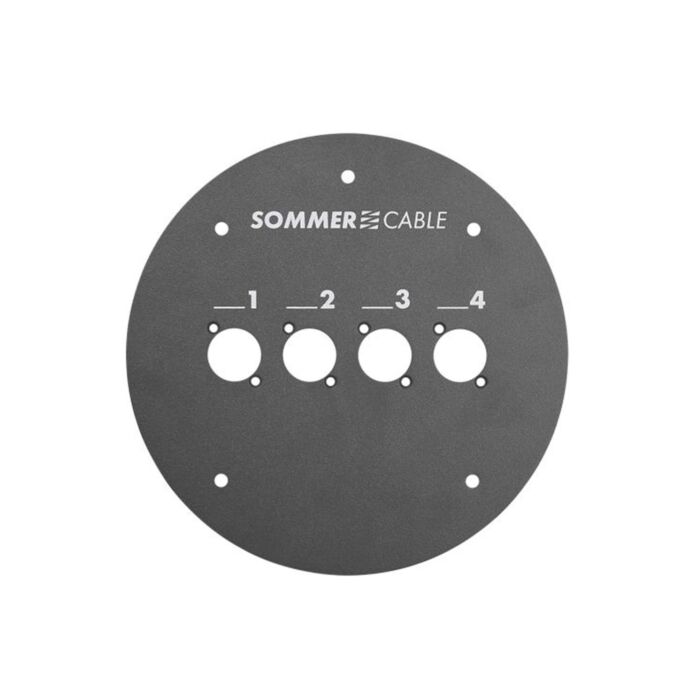

Schill Rund04 d-type plate. 1 Cut out Metal plate for GT310.

SOMMER CABLE cover panels in charcoal grey coated 2 mm sheet steel. As multipin die-cut for RUND-MP01 and RUND-MP02 models, we use our multifunctional punching like with THE BOXX MK II and the PLUG MAMA MK II.
Owing to the pre-cut M4 threads the installation is particularly quick and easy. Matching adapter panels (e.g. to LK37, Siemens etc.) can be found a couple of pages forward under “Adapter panels THE BOXX”.
In addition to the Schuko sockets the blue 3-pole CEE socket (Mennekes) can also be installed on the RUND0204 panel (using pre-cut M4 threads).
The large round panels RUND16 to RUND40 can be mounted directly on the reel using the RUND-FL (6 holes with a pitch circle diameter of 27.5 cm must be drilled into the reel).
