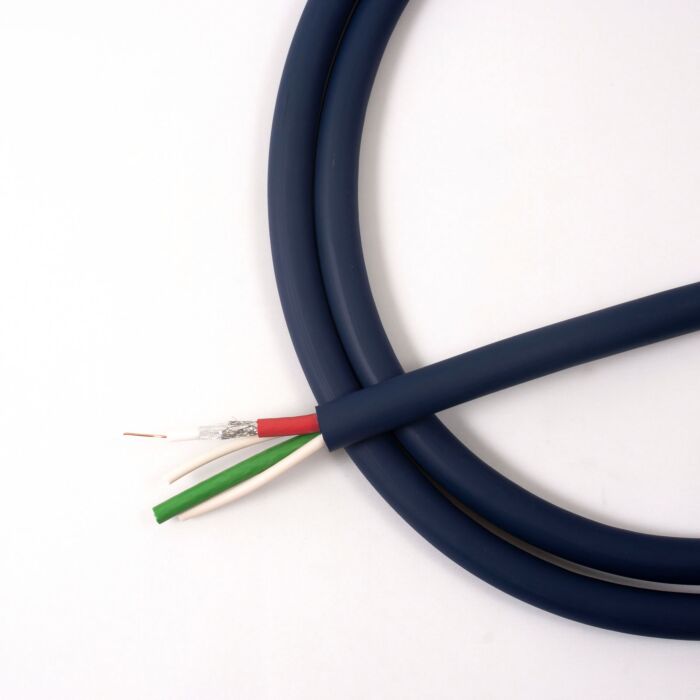

Sommer SC-Vector 2 way Coax Multicore. 6G. RG6 U. SOLID. 600-0162-02

As swift as an arrow...

is the data transmission of the SC-Vector (RCB) with its 1.5 Gb/s rate which also guarantees a low return loss. Of course, the SC-Vector (RCB) can also serve as a high-quality G-SDI-video line for studio or OB van applications. With its dual shielding and outstanding damping values it offers numerous benefits compared to simple video cables. In comparison to a 0.6/3.7 video cable it allows up to 30 % longer transmission distances.

*Check out our ‘Length v’s Performance Guide’

Figures shown generally involve a 20% tolerance (de-rating) due to the many factors that can influence performance. Care should always be taken with Coaxial cables when installing and using dynamically to not twist, bend or crush them as this will have a significant impact on performance.

Advantages:

• Low damping values for long distances
• Robust and durable outer sleeve

Application:

• Digital SDI/HD-SDI long distance transmission
• Video transmission for OB van technology

Technical Data:

• Article number: 600-0162-02
• Name: SC-Vector (RCB)
• EAN: 4049371001373
• Properties: Digital 75 Ω
• Properties: SDI
• Properties: 3G-SDI
• Properties: 6G-SDI
• Properties: OFC oxygen free copper
• Properties: Analog
• Application area: ELA 100 V
• Application area: Installation
• Application area: Studio / Broadcast
• Application area: Mobile outdoor / indoor
• Application: video cable
• Colour: blue
• Construction: 2x02YS(ST)CH0,8/3,7 HD-SDI
• Jacket material: PVC
• Jacket Ø: 15,00 mm
• Jacket Ø: 0.5906 "
• Number of Channels (video): 2
• Inner conductor (video): 1
• Inner conductor (video): 0,50 mm²
• Inner conductor (video): 0.0008 sqin
• Inner conductor Ø (video): 0,80 mm
• Inner conductor Ø (video): 0.0315 "
• AWG (video): 20
• Shielding: AL / PT-foil + Copper braiding tin-plated 85 %
• Shielding factor: 100 %
• Copper strands (video): 1
• Copper strand Ø (video): 0,80 mm
• Copper strand Ø (video): 0.0315 "
• Conductor insulation material: Gas Injected-PE
• Conductor insulation Ø: 3,70 mm
• Conductor insulation Ø: 0.1457 "
• Weight per 1 m: 230 g
• Weight at 1000 ft.: 154.7707 lbs
• Fire load per m: 0,9 kWh
• Style variant: round
• Packing: bulk stock
• Velocity factor: 0,82
• Temperature min.: -10 °C
• Temperature max.: 80 °C
• Max. Transmission length (SMPTE 425M, 3G): 109 m
• Max. Transmission length (SMPTE 425M, 3G): 357.6116 ft
• Max. Transmission length (SMPTE 2081, 6G): 74 m
• Max. Transmission length (SMPTE 2081, 6G): 242.7822 ft
• Width: 15 mm
• Width: 0.5906 "
• Height: 15 mm
• Height: 0.5906 "
• Capacity wire/electic screen at 1m (video): 52,9 pF
• Capacity wire/electic screen at 1 ft. (video): 16.1239 pF
• Impedance: 75 Ω
• Conductor resistance per 1 km: 37 Ω
• Conductor resistance per 1000 ft.: 11.2776 Ω
• Shield. resistance per 1 km: 20 Ω
• Shield. resistance per 1000 ft.: 6.096 Ω
• BPVo-Euroclass: Fca
• Max. Transmission length (SMPTE 2082, 12G): 46 m
• Max. Transmission length (SMPTE 2082, 12G): 150,9186 ft
