Screened Van Damme Cat6 & Cat5e Cable on Reel. Behringer X32 Soundcraft Roland Yamaha

As low as £172.49
In stock
SKU
(DAC.2)VanDamme.SF.UTP.

Maximum 15 characters

This cable is the ‘Touring’ choice for hooking up digital mixing consoles to digital snakes and stage boxes

Van Damme Cat 6 Tourcat SF/UTP is a 23 AWG solid conductor screened cable with polyethylene cross member specifically designed for dynamic use. It meets the requirements of Category 6 TIA/EIA-568-C-2, and has been tested with a Fluke DSX cable verifier, proving Cat 5E Gigabit channel link performance to 77 metres. Longer distances are possible but not guaranteed.

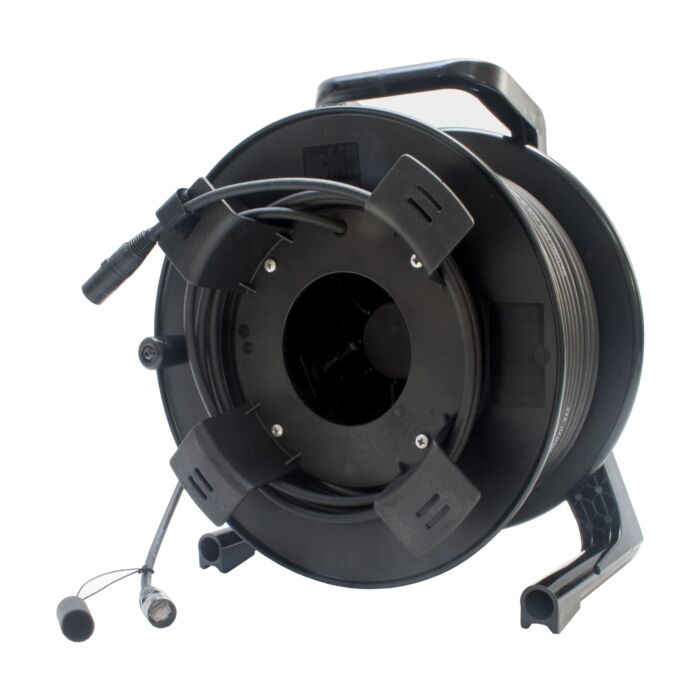

This cable is the ‘Touring’ choice for hooking up digital mixing consoles to digital snakes and stage boxes, and for daisy chaining equipment together. Cable ends are terminated in Sentinel CAT6 RJ45 plugs and protected by Neutrik Ethercon. The Ethercon are protected when not in use with a rubber cover. The tail from the reel is 2m in length.



  • Van Damme Cat 6 Tourcat SF/UTP with 23 AWG solid conductors + overall screened cable
  • Meets the requirements of Category 6 TIA/EIA-568-C-2, EN 50288-2-2 and ISO/IEC 11801
  • Cat6 and CAT5e compliant
  • Sentinel CAT6 RJ45 plugs and protected by Neutrik Ethercon
  • Rubber Covers to protect Ethercons when noty in use
  • 2m Fly lead on flange
  • Schill GT range of reels



More Information
Cable Capacitance (core to core) 55pF/m
Cable Resistance 110ohm Impedance
Cable Conductor 23 awg
Cable Screening Aluminium/Polyester foil Screen + tinned copper braid < 80% coverage
Cable Jacket Thermoplastic Vulcanizate (TPV)
Overall Diameter 8.5
Brand.... Van Damme
Application.... Tour & Studio Grade
Poles 8 Pole
