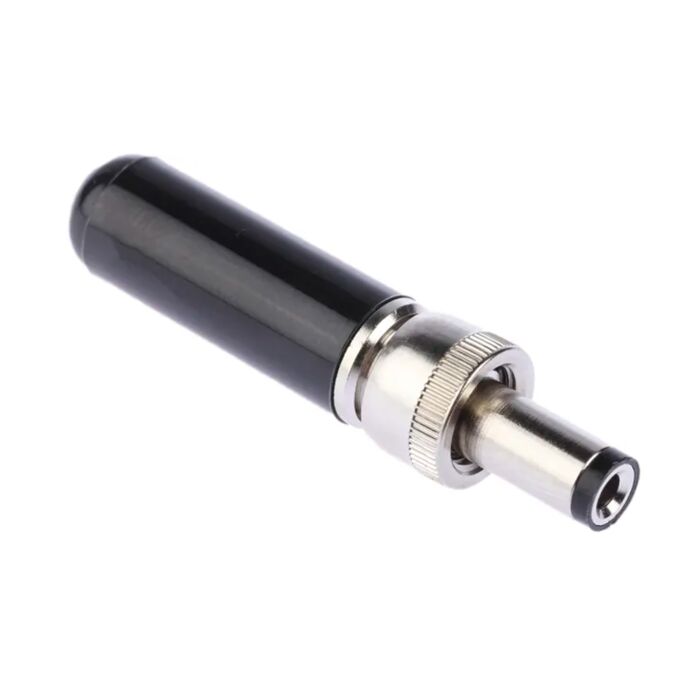

Switchcraft 761K Black Locking 2.5mm DC Plug Power Jack - 12mm Shaft
£8.29
In stock
We have 55 items in stock!
SKU
DC_SW.25.Locking.9mm.BK
Multibuy discounts calculated at checkout
- Buy 5 for £7.88 each and save 5%
- Buy 10 for £7.46 each and save 10%
- Buy 15 for £7.05 each and save 15%
- Buy 20 for £6.63 each and save 20%
DC POWER PLUG, 0.100" ID pin, 1.8" overall length, black insulator tip, black handle, locking
Switchcraft 2 conductor DC power plugs with a hollow centre pin and molded plastic covers for use with 2.1mm and 2.5mm Jacks. The sleeve terminal also serves as a cable clamp. Available in red or black cover versions and in versions that lock when mated into a suitable jack socket.
Features and Benefits
- Current rating 5A at 12VDC
- Over 10,000 mating cycles
- Plug Sleeve and Pin - Nickel-Plated Copper Alloy
- Lock-Ring Thread Size - 5/16 - 32 UNEF 2B
- Finger Insulator and handle - Moulded Plastic
- Insulating Washers - Rigid Plastic
- Sleeve Terminal - Electro-Tinned Copper Alloy
- Handle Thread Size: 5/16 - 24 UNF 2B
| Delivery Speed | Next Day delivery available if 'In Stock' |
|---|---|
| Mounting Method | Cable Mount - Solder |
| Contact Material | Nickel Plated |
| Number of Contacts | 2 Pole |
| Current Rating | 5 amps |
| Pack Quantity | Pack of 1 |
| Manufacturer URL | Download Data Sheet |
