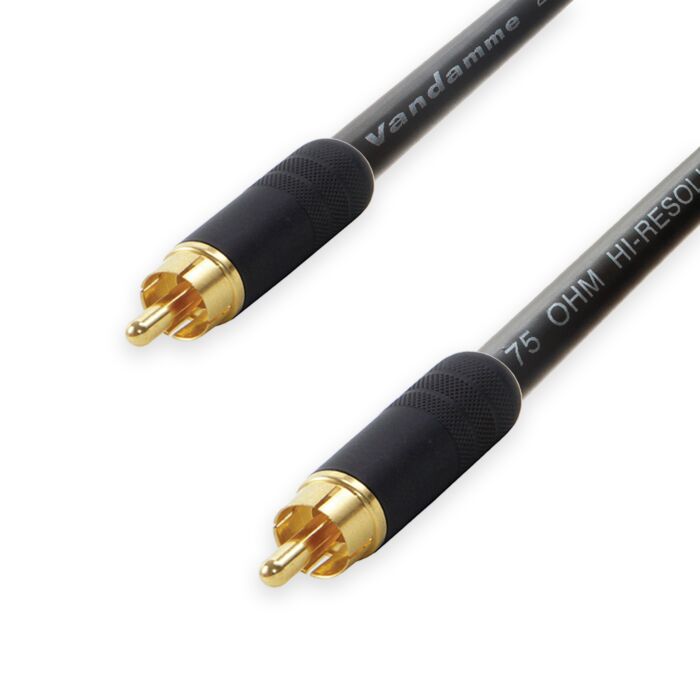

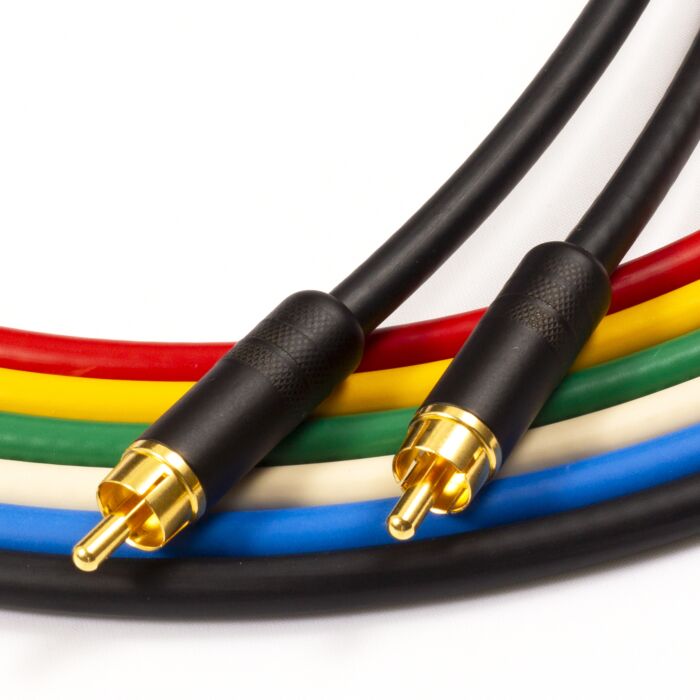

Van Damme COAXIAL RCA to RCA Lead. 75ohm Plasma Coax Cable. CCTV Video SPDIF

As low as £16.82
In stock
SKU
3502-VDCO75-3502

Maximum 15 characters

High quality 75ohm RCA to RCA leads made using Switchcraft 3502ABAU RCAs and Van Damme Plasma grade coax. These cables will work used as Video interconnects and also SPDIF or word clock.

High quality 75ohm RCA to RCA leads made using Switchcraft 3502ABAU RCAs and Van Damme Plasma grade coax. These cables will work used as Video interconnects and also SPDIF or word clock.

Van Damme 75 Ohm Plasma Grade Video Coax is a high resolution cable. Precision performance is combined with flexibility usually only found in microphone cables resulting in an excellent video cable for dynamic use in the broadcast, video and presentation markets.

Switchcraft RCAs are some of the best in the business. The centre pin and outer shield connection are made from solid brass and gold plated for maximum durability.



Terminated using Switchcraft 3502ABAU RCA Connectors

Van Damme 75Ohm Plasma Grade Coax Cable

Manufactured using 4% silver solder











More Information
Cable Capacitance 67 pF/m Impedance at 10MHz - 75 Ohms ± 2
Cable Resistance Conductor - 85 Ohm/Km. Shield - 13 Ohm/Km. Insulation - > 5000 M Ohm/Km.
Cable Conductor Material - Bare UPOFC Stranding- 7x 0.20mm (0.22mm2)
Cable Screening NA
Cable Jacket Material - Flexible PVC Average thickness - 0.95mm Overall diameter - 6.15mm
Overall Diameter NA
Brand.... Van Damme
Application.... Tour & Studio Grade
Terminated with.... Male RCA to Male RCA
Metal Type.... Gold Plated
Core Count.... 2 Way
