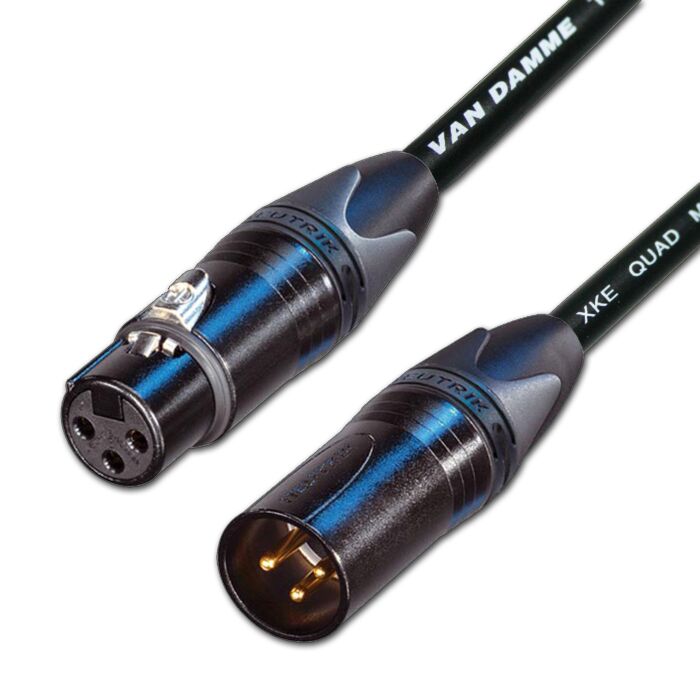

Van Damme STARQUAD Balanced Cable. Best Neutrik Gold XLR to XLR Microphone Leads

Rating:
100% of 100
As low as £13.58
In stock
SKU
NC3FXX-B-VDSQ-NC3MXX-B

Maximum number of characters: 15

High quality leads for interconnecting devices such as microphones, mixing desks, home AV systems, sound cards, monitor speakers, amplifiers, etc.

High quality leads for interconnecting devices such as microphones, mixing desks, home AV systems, sound cards, monitor speakers, amplifiers, etc.

Starquad is the next level in balanced cabling. Balanced leads minimise noise interference by using two twisted cores (1 x + & 1 x -). The signals are sent perfectly out of phase with one another and then re-inverted at the destination. The interference collected along the cable length is also then inverted, so put out of phase and made silent. Starquad leads use two cores per signal path (2 x + & 2 x -) all twisted around each other. This increases the surface area of the cable cores and means that noise is induced more evenly down the length. This even induction means that more noise is cancelled when the signals are re-inverted. These cables are used extensively in broadcasting due to the above.

The Van Damme cable is tough and flexible due to its PVC outer jacket. The Neutrik connectors are a tour grade product that boasts outstanding cable strain relief. A rugged, durable and great sounding lead. The Gold Contacts are made from bronze and plated with gold. They offer superior durability over silver as they do not tarnish easily.



Van Damme XKE Starquad Microphone Cable

Neutrik NC3MXXB and NC3FXXB XLR Connectors

Manufactured using 4% silver solder



More Information
Cable Capacitance Core to Core pF/m50 nominal Core to screen pF/m95 nominal
Cable Resistance Conductor Ohm/Km<93 Screen Ohm/Km<25 Insulation M Ohm/Km>500
Cable Conductor Conductor Ohm/km<93
Cable Screening -
Cable Jacket Material Flexible PVC/Neoprene Composite Average thickness 0.5mm Overall Diameter 6.00mm 0.15
Overall Diameter -
Brand.... Van Damme
Application.... Tour & Studio Grade
Terminated with.... Male XLR to Female XLR
Metal Type.... Gold Plated
Poles 3 Pole
Core Count.... No
Cable Colour.... No
Length No
Boot Colour No
Braided Tail Colour No
