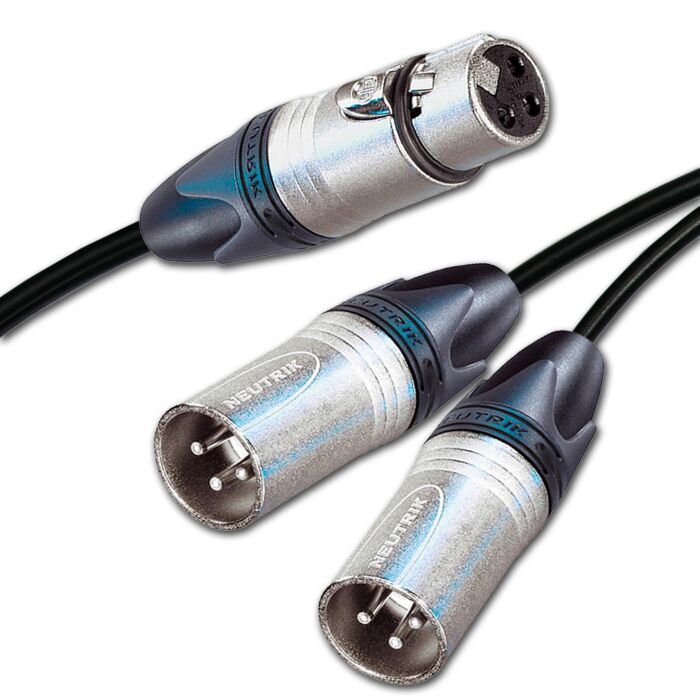

Balanced Female XLR Split into Dual (x2) Balanced Male XLRs (AES DMX Compatible)


Quick Overview

A cable that splits a balanced Female XLR into 2x identical balanced Male XLRs. For example; these can be used to duplicate the output of a microphone into 2 inputs for recording purposes. Please note that this is a balanced lead, not stereo. The cable has an impedance of 110ohm so is suitable for AES & DMX applications.

Availability: In stock

Check Prime Stock
Ship to: Worldwide
Reset Configuration
  • Black
  • Blue - +£1.00
  • Red - +£1.00
  • Yellow - +£1.00
  • Green - +£1.00
  • White - +£1.00
  • Purple - +£1.00
  • Orange - +£1.00
  • Grey - +£1.00
  • Brown

Characters left: 10

* Required Fields



This lead allows you to split a balanced signal into two identical balanced signal lines. For example; Splitting the balanced XLR output of a mixing desk into two identical signal lines to serve two separate amplifiers. Or; daisy chaining effects units.


The lead comprises of Sommer’s SC Peacock Twin Balanced Cable, a Neutrik Female XLR and Neutrik Silver Male XLR’s. All components are industry standard quality and built to last. The internal cable strain relief inside the XLR’s is Neutrik’s unique ‘Chuck Type’ offering exceptional restraint.


All pairs purchased will be sent marked as ‘RED FOR RIGHT’ & ‘BLACK FOR LEFT’ by using coloured marking rings or boots on the connectors.

  • 2 x Tour Grade Neutrik NC3MXX Silver Male XLRs
  • Tour Grade Neutrik NC3FXX Female Silver XLR
  • Sommer Peacock twin shotgun cable
  • Cable split at approximately 15cm (can be easily modified)
  • Manufactured using 4% silver solder


Additional Information

Prime Link No
Cable Capacitance Capac. cond./shield. per 1 m (AES/EBU, DMX): 125 pF
Cable Resistance Cond. resistance per 1 km (AES/EBU, DMX): 90 Ω
Cable Conductor AWG 24. Shielding: Copper spiral sleeve (AES/EBU, DMX): 0,22 mm²
Cable Screening -
Cable Jacket Jacket material: S-PVC. Width: 9.2 mm - Height: 4.5 mm
Overall Diameter -
Brand.... Sommer
Application.... Tour & Studio Grade
Terminated with.... Male XLR to Female XLR
Metal Type.... Silver Plated
Poles 3 Pole
Works with.... Male XLR, Female XLR
Special Attribute Balanced, Splitter
Core Count.... N/A
Wireless System No
Boot Colour N/A
Cable Colour.... Black
