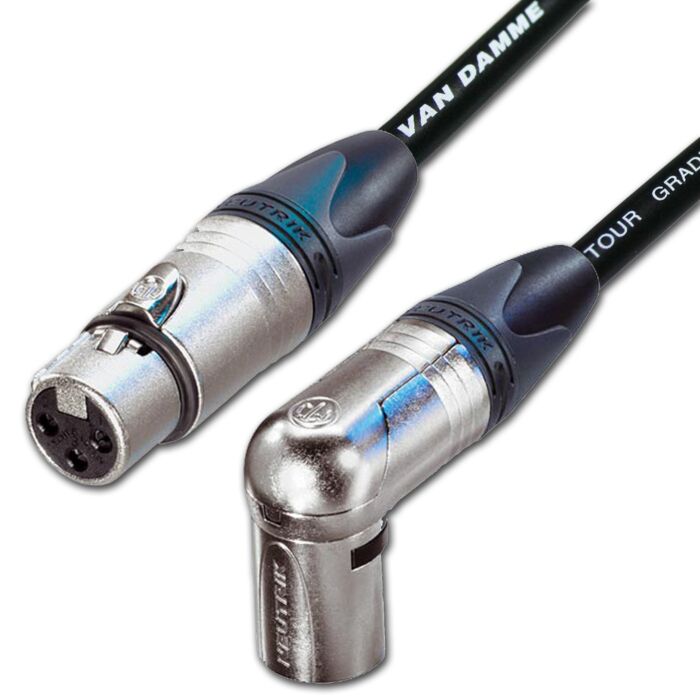

Van Damme & Neutrik Female XLR to Angled Male XLR Cable. Star quad Lead.
Multibuy discounts calculated at checkout
- Van Damme Starquad XKE balanced cables (268-026-000)
- Mixed silver plated and bare copper conductors (UPOFC).
- Capacitance Core to screen - 91 pF/m.
- Neutrik NC3FXX and NC3MRX connectors.
- Manufactured using 3.5% silver solder.
- Free Velcro Cable tie with all lengths 2m and over.
- Van Damme Starquad XKE balanced cables (268-026-000)
- Mixed silver plated and bare copper conductors (UPOFC).
- Capacitance Core to screen - 91 pF/m.
- Neutrik NC3FXX and NC3MRX connectors.
- Manufactured using 3.5% silver solder.
- Free Velcro Cable tie with all lengths 2m and over.
Van Damme Tour Grade Classic XKE Starquad is specified for analogue audio signals in areas of high electronic interference. Ideal for outside broadcast in areas that may be subject to EMI and RFI – for example, in close proximity to lighting dimmer circuits and major power feeds. This cable combines electrical integrity with mechanical strength without compromising flexibility.
Perfect for interconnecting devices such as microphones, mixing desks, home AV systems, sound cards, monitor speakers, amplifiers, DSLR cameras, portable recorders, etc.
These XLRs can be angled in whichever direction you require. Please use the available options above to make your selection, use the detailed image to help you choose the correct direction.
Balanced leads minimise noise interference by using two twisted cores (1 x + and 1 x -). The signals are sent perfectly out of phase with one another and then re-inverted at the destination. The interference collected along the cable length is also then inverted, so put out of phase and made silent. Starquad leads use two cores per signal path (2 x + and 2 x -) tightly twisted around each other. This increases the surface area of the cable cores and means that noise is induced more evenly down the length.
The Truth behind Gold and Silver Connectors........
Silver is the better conductor however gold is highly resistant to corrosion so is favoured for its durability.
Delivery Speed | Made to Order - Next Day Delivery Available |
---|---|
Cable Capacitance | Core to screen 91 pF/m nominal |
Cable Resistance | <93 ohm |
Cable Conductor | 7 x 0.08mm Silver Plated UPOFC + 32 x 0.08mm Bare UPOFC |
Cable Screening | - |
Cable Jacket | Flexible PVC/Neoprene composite / Overall Diamter 6mm |
Overall Diameter | - |
Cable Brand | Van Damme |
Application | Tour & Studio Grade |
Contact Material | Silver Plated |
Number of Contacts | 3 Pole |
