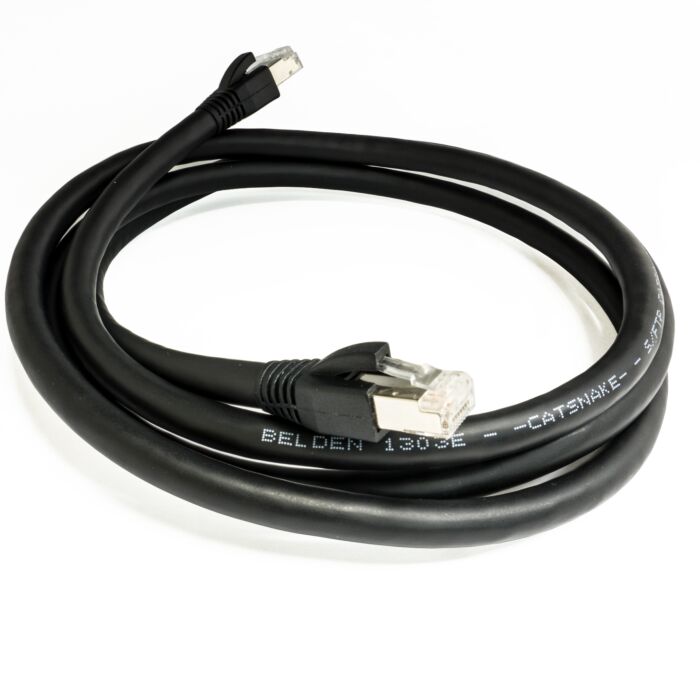

Premium Belden 1303E CATSNAKE Cat6a Ethernet Network Cable. Flexible S/FTP

As low as £27.10
In stock
SKU
DAC.CAT6a-BELDEN.1303E.PRNT-DAC.CAT6a

Maximum 15 characters

These cables are commonly used in hi-end HIFI systems to connect streaming devices within the setup. For example, your NAS or laptop to your router

Premium quality Cat6a data cables. Manufactured with Belden 1303E Catsnake cable and quality shielded RJ45 connectors with a metal shroud

In order to minimise any unwanted interference each pair of conductors is foil screened; this then works in conjunction with the integral overall-braided shield to reduce EMI. You have the option above to have the shield 'connected' or left 'floating', this will depend on your equipment and personal preference. If left floating then this cable will not perform to Cat6a specifications, but will still function perfectly well as Cat5e, which is the most common type of specification in HiFi setups

The cable has two jackets; the first tightly holds the conductors in place so they do not move around. The second is made from a tubular style rugged PVC, this makes the cable durable and easy to coil

These cables are commonly used in hi-end HiFi systems to connect streaming devices within the setup. For example, your NAS or laptop to your router

  • Premium Belden 1303E Catsnake cable
  • Shielded RJ45 connectors with a metal shroud
  • Precision tools used to crimp plugs
  • 10 colours of boot/gland available for identification


Field deployable CAT6a patch horizontal and building backbone cable; CobraNEt, eSnake, Ethersound, Digital audio over Ethernet; Support current and future Category 6A and 6 applications, such as: 10GBase - T(10 Gigabit Ethernet), 1000 Base - T (Gigabit Ethernet), 100 Base - T, 10 Base - T, FDDI, ATM; Compatible connectors Belden R301601 000S1 (T568A) and R301602 000S1 (T568B)

More Information
Cable Capacitance 56 pF/m
Cable Resistance Nominal Characteristic Impedance - 100 Ohm
Cable Conductor Individual shielded pair 24awg. Stranded Bare Copper
Cable Screening Braid - Tinned Copper
Cable Jacket Matte rugged PVC
Overall Diameter 8.7mm
Brand.... Belden
Application.... Tour & Studio Grade
Terminated with.... Male XLR to Female XLR
Metal Type.... Gold Plated
Poles 8 Pole
