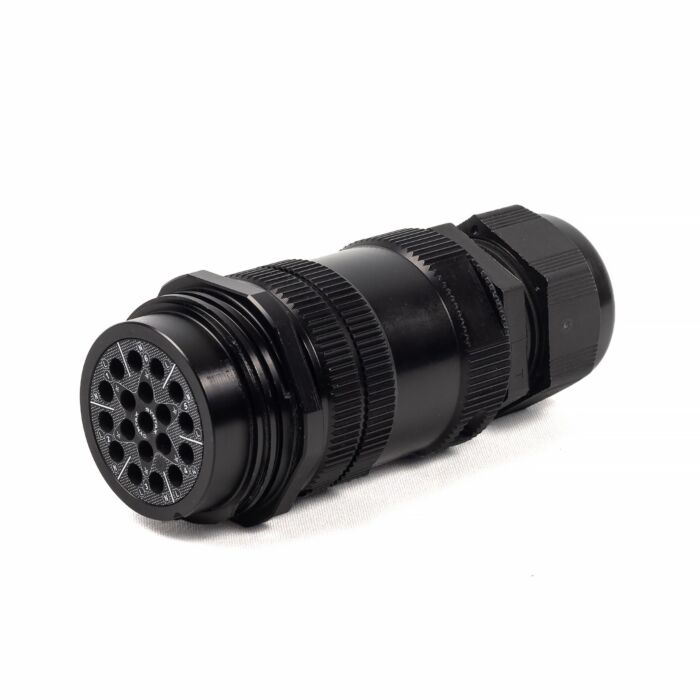

Syntax SSX Female Socapex Compatible 19 Pole Cable Mount Connector

*Silver Pins Included in Packaging*

The Syntax® SSX series, designed for professional applications and totally compatible with standard Soca 19-pin series connectors, is extremely robust being made of thick wall construction machined aluminum alloy, with hard wearing black painted or anodized finish. The thermoplastic insulating insert enables the use of removable contacts, either crimp or solder. The unit is completely IP67 watertight when mated. Electrical safety and compliance are guaranteed by internal insulation of the shells, obtained through a safety insulating sleeve preventing electric shock, as well as “first make last break” ground contacts. Grounding rings allow bussing of the ground contacts. Locking rings and backshells are designed for easy handling.

Technical Information

Ingress protection - IP67-IEC 529 norms

Salt atmosphere resistance  -  96 h IEC 68-21-11

Operating temperature - -55°C to +125°C

Shell material - machined aluminium alloy

Finish - black painted or anodized

Inserts - Thermoplastic rubber

Cable gland on inline versions - Metric M40 thread

Cable gland on multiway versions - Metric M40 (4-way) or M50 (6-way and 8-way) thread

Contacts - Silver or gold plated removable for crimping or soldering

Typical applications

- Electrical power systems
- Power distribution
- Outdoor concerts and sporting events
- Outdoor broadcasting
- Theatres
- Mobile generators
- Industrial vehicles
- Railway installations
- Military installations
- Load banks
- Backup power systems
- Electrical power supply companies
- Heavy industry
