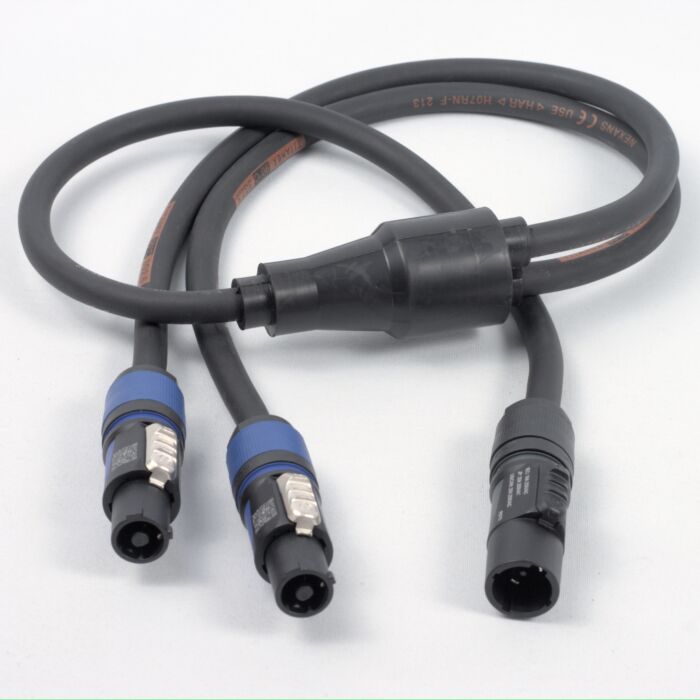

True1 PowerCon to 2x PowerCon, Professional AC Y Splitter Cable,

The Connectors

powerCON TRUE1 is a locking true mains connector for harsh and demanding applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

This is a connector series with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.

powerCON FXXA/FXXB is a single phase (3 conductor) lockable power connector with Circuit Breaking Capability when mated with powerCON XX Series receptacles.

Cable

The cable used is TITANEX 2.5mm CSA H07RN-F with a heavy duty over-molded junction at the split.

• Number of cores: 3
• Cross sectional area: 2.5mm
• Notional MAX Current rating: 25amps (Table 4F3A)
• Weight: 195 grams / per meter
