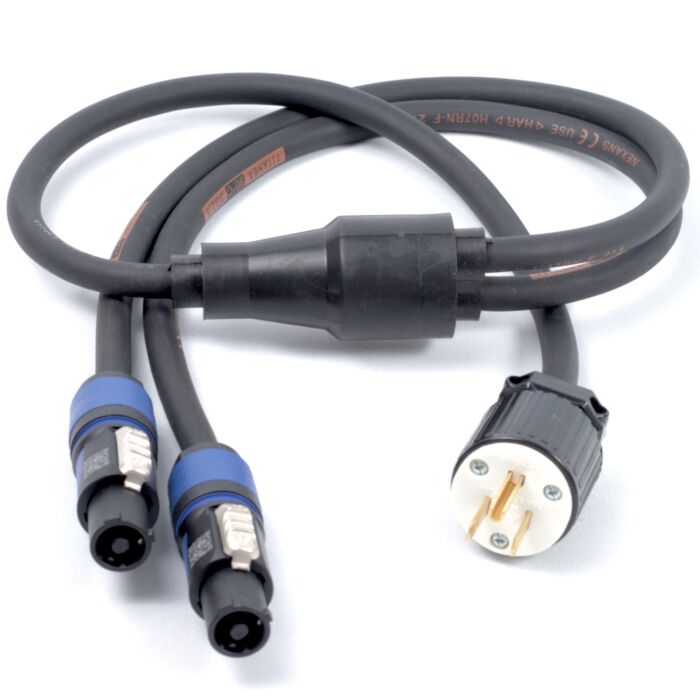

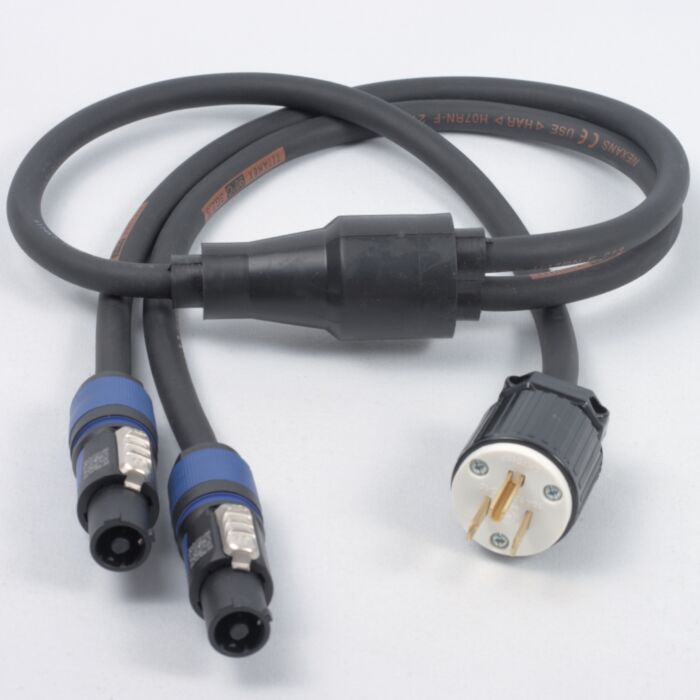

US Plug Nema to x2 PowerCon, Professional AC Y Splitter Cable,
£83.17
In stock
We have 10 items in stock!
SKU
NEMA.PG-3x2.5mm.Ysplit-2xNAC3FXXA
Multibuy discounts calculated at checkout
US Plug Nema to x2 PowerCon Sockets, Professional AC Y Splitter Cable,
The Connectors
High Quality 15 AMP NEMA North American rewire-able plug. These are made from Hard plastic and have a reliable cord grip inside the plug. The cable entry can accept H05, H07 and PVC cables up-to 3x1.5mm. The earth connection inside the plug is a robust screw type connection
powerCON FXXA/FXXB is a single phase (3 conductor) lockable power connector with Circuit Breaking Capability when mated with powerCON XX Series receptacles.
Cable
The cable used is TITANEX 2.5mm CSA H07RN-F with a heavy duty over-molded junction at the split.
- Number of cores: 3
- Cross sectional area: 2.5mm
- Notional MAX Current rating: 25amps (Table 4F3A)
- Weight: 195 grams / per meter
| Delivery Speed | Made to Order - Next Day Delivery Available |
|---|---|
| Cable Conductor | 2.5mm Copper |
| Cable Screening | None |
| Cable Jacket | Rubber |
| Overall Diameter | 11.50mm |
| Cable Brand | TITANEX |
| Application | Tour & Studio Grade |
| Number of Contacts | 3 Pole |
