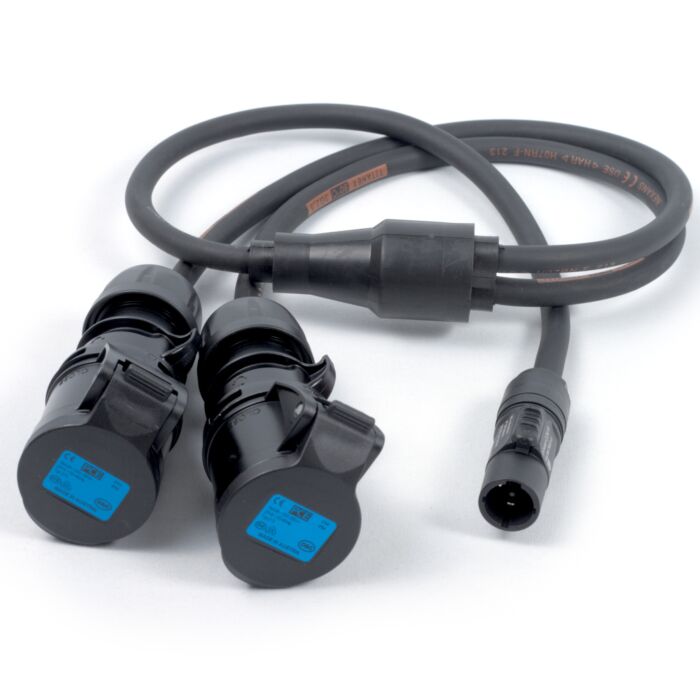

True1 PowerCon to 2x 16a PCE, Professional AC Y Splitter Cable,

The Connectors

16amp PCE Commando Plug is specialized in the production of industrial plugs, sockets and power distribution boxes. During the past few years, the company has gone through a phase of rapid development and is now one of the world’s leading manufacturers of CEE IEC60309 plugs, sockets and accessories.

powerCON TRUE1 is a locking true mains connector for harsh and demanding applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

This is a connector series with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.

Cable

The cable used is TITANEX 2.5mm CSA H07RN-F with a heavy duty over-molded junction at the split.

• Number of cores: 3
• Cross sectional area: 2.5mm
• Notional MAX Current rating: 25amps (Table 4F3A)
• Weight: 195 grams / per meter
