Van Damme 4K UHD 1080p & 2160p 6G Solid Video Coax Cable Reel. Neutrik BNC

Van Damme Enhanced Performance HD Vision coaxial cable is based around the industry standard RG6/U, at 7mm overall diameter this is a heavy-duty cable. It has a solid centre conductor so stiffer than stranded versions but offers high performance over longer lengths. Precision construction ensures trouble free performance of 4K UHD as well as being backwards compatible with HDTV, 3G-SDI, HD-SDI signals (SMPTE 424M and SMPTE 292M), SDI and analogue video. Distances vary so please check out our guide below.

We have used the latest Neutrik UHD BNCs on these cables to ensure high-quality, error free signal transfer.

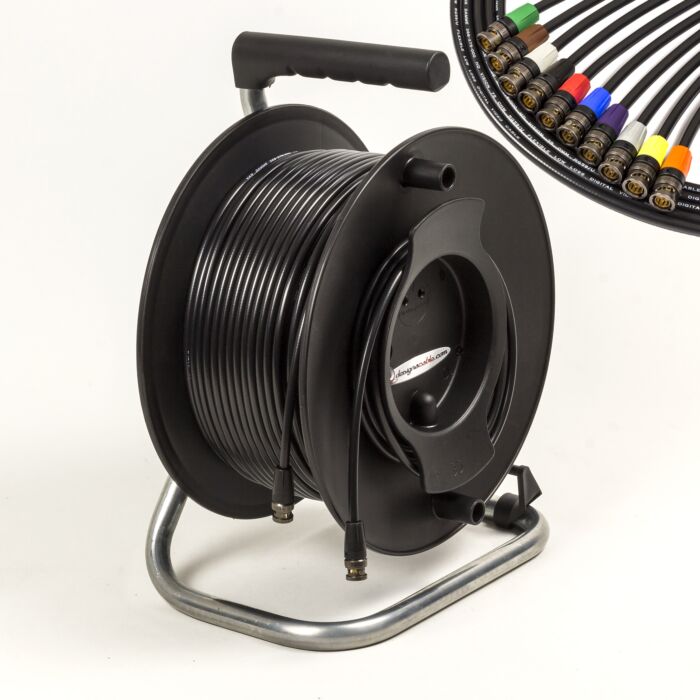

The cable is mounted on an HDP, Steel Frame drum. The drum has a flange on the side with 2m of cable wound around it. There are no breaks or joins in this cable, it is one complete length.

• Equivalent to Belden 1694A
• RG6/U. 7mm Overall Diameter
• Transmission of 4K UHD, HDTV, 3G-SDI, HD-SDI, SDI and analogue video signals
• 720p, 1080i, 1080p, 1080p120, 2160p30 compatible
• Solid centre conductor for High-Performance
• Designed for Cinema rooms, touring and outside broadcast
• Neutrik Rear Twist ‘Ultra High Definition’ BNCs (coloured boots available)
• Crimped with the official Neutrik BNC crimping tool

*Check out our ‘Length v’s Performance Guide’

Figures shown generally involve a 20% tolerance (de-rating) due to the many factors that can influence performance. Care should always be taken with Coaxial cables when installing and using dynamically to not twist, over-bend or crush them as this will have a significant impact on performance
