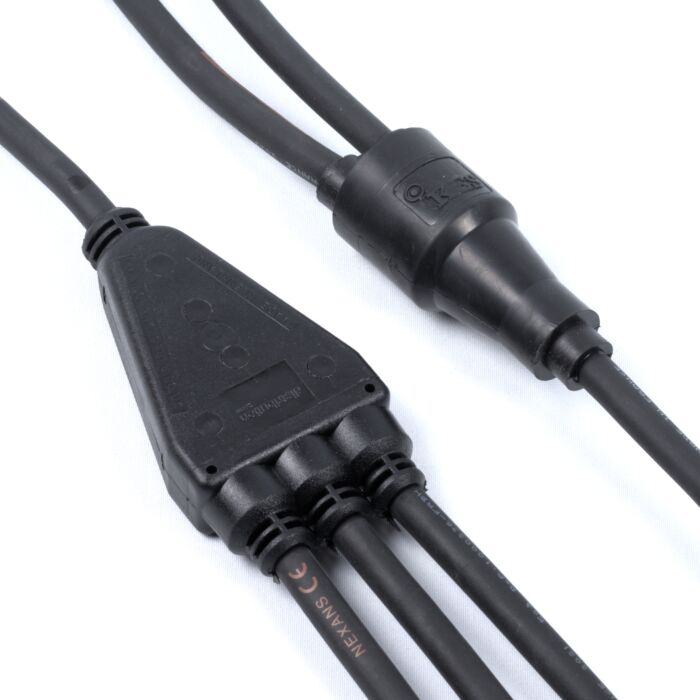

Y Split H07 Cable 2 and 3 way tough rubber splitter cable

240v Power splitting cables.

available in...

2 way

• 3x2.5mm
• 3x4mm
• 3x6mm

3 way

• 3x2.5

Cable

made using TITANEX. H07RN-F Tough Rubber. Heavy Duty Outdoor Events Mains Cable.

Construction characteristics

• Lead free Yes
• Sheath colour Black
• Conductor material Bare copper
• Outer sheath Special cross-linked elastomer
• Insulation Special cross-linked elastomer

Mechanical characteristics

• Mechanical resistance to impacts Very good
• Cable flexibility Flexible

Usage characteristics

• Chemical resistance Accidental
• Water proof Good
• RoHS conform Yes
• Operating temperature, range -25 .. 55 °C
• Short-circuit max. conductor temperature 200 °C
• Oil resistance Yes
• Max. conductor temperature in service 85 °C

3x2.5mm

• Number of cores: 3
• Cross sectional area: 2.5mm
• Notional MAX Current rating: 25amps (Table 4F3A)
• Weight: 195 grams / per meter

3x4mm

• Number of cores: 3
• Cross sectional area: 4mm
• Notional MAX Current rating: 32amps (Table 4F3A)
• Weight: 260 grams / per meter

3x6mm

• Number of cores: 3
• Cross sectional area: 6mm
• Notional MAX Current rating: 39amps (Table 4F1A)
• Weight: 346 grams / per meter
