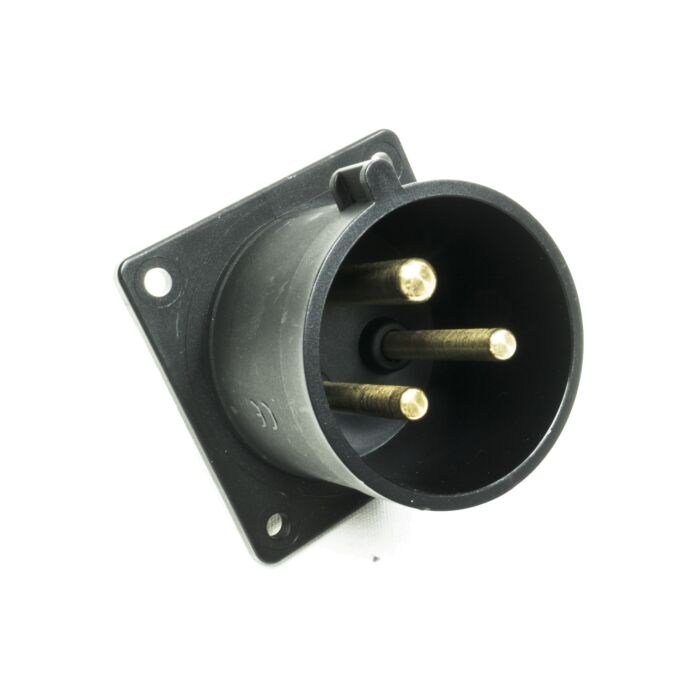

32amp 230v 2P+E IP44 Black Straight Flush Panel INLET Male. 3 Pole PCE (623-6X)

PCE is specialized in the production of industrial plugs, sockets and power distribution boxes. During the past few years, the company has gone through a phase of rapid development and is now one of the world’s leading manufacturers of CEE IEC60309 plugs, sockets and accessories.

• Screw terminals
• Brass contacts
• 2.5mm to 6mm Wiring
• Housing material PA6
• 32A 230V 2P+E IP44
• Flange Size 70 x 70 mm
• Fixing Centre 56 x 56 mm

CEE-plugs and sockets with rated currents 16A and 32A must meet the system of protection IP44 or IP67;

PCE plugs and sockets are produced from POLYAMIDE 6. The main characteristics of this material are:

• excellent impact resistance combined with high rigidity and solidity,
• high thermal stability (self-extinguishing),
• very good insulating qualities,
• high disruptive strength,
• high abrasion resistance,
• high weathering resistance,
• very good chemical resistance to various chemicals,
• free from cadmium and halogen (fluorine, chlorine, bromine, jodine, astatine)
• conform to RoHS-directiv 2011/65/EU
