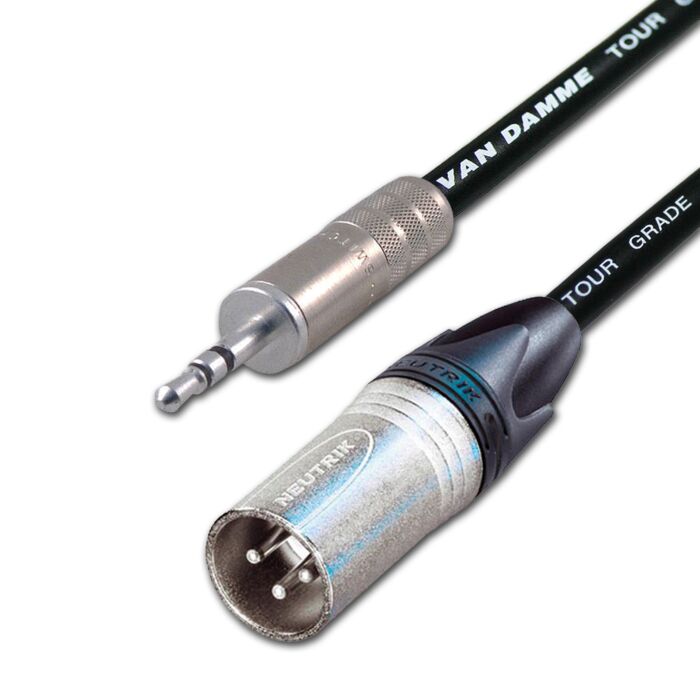

Pseudo Balanced 3.5mm Stereo Mini Jack to Mono Male XLR Lead. Van Damme Cable
This is a Pro quality lead designed to take the stereo signal from an iPod or similar device and send it to a single balanced Male XLR input of a mixing desk, camera, recorder etc. The Left and Right channels will be summed together.
These leads are cleverly wired to improve the signal quality when connecting a stereo device to a balanced XLR input. Our method is tried and tested by professionals around the world, you will find these cables in use in high end DSLR camera rigs and PA setups.
To wire these we use a 4 core and screen cable, and wire the unused pin inside the XLR to the ground inside the jack. The screen is only connected to the XLR. This method reduces interference, eliminates ground loops and improves the signal quality. Its very simple, and very effective! Should you require any other wiring to suit your requirements, please ask.
We have used the world renowned Van Damme Starquad cable with industry standard Neutrik and Switchcraft connectors. These cables look and sound great. All terminations are made with a 4% silver solder.
- Neutrik NC3MXX XLR and Switchcraft 35HDNN 3.5mm Mini Jack connectors.
- Manufactured using audiophile grade 4% silver solder
- "What are balanced cables"? Check out our Knowledge Blog
Silver is the better conductor however gold is highly resistant to corrosion so is favoured for its durability.
| Cable Capacitance | Core to Core pF/m 50 Nominal |
|---|---|
| Cable Resistance | <85 ohm |
| Cable Conductor | Mixed; Bare UPOFC (32x 0.08mm)+ Silver Plated UPOFC (7x 0.08mm) |
| Cable Screening | - |
| Cable Jacket | Flexible PVC/Neoprene composite / Overall Diamter 6.5mm |
| Overall Diameter | - |
| Brand.... | Van Damme |
| Application.... | Tour & Studio Grade |
| Terminated with.... | Male XLR to TRS Jack |
| Metal Type.... | Silver Plated |
| Poles | No |
| Core Count.... | 2 Way |
| Cable Colour.... | No |
| Length | No |
| Boot Colour | No |
