Combined Power and Signal Loom. IEC. XLR PA Solution 10m
£140.00
In stock
We have 1312 items in stock!
SKU
10_Custom_Hybrid_Loom
Multibuy discounts calculated at checkout

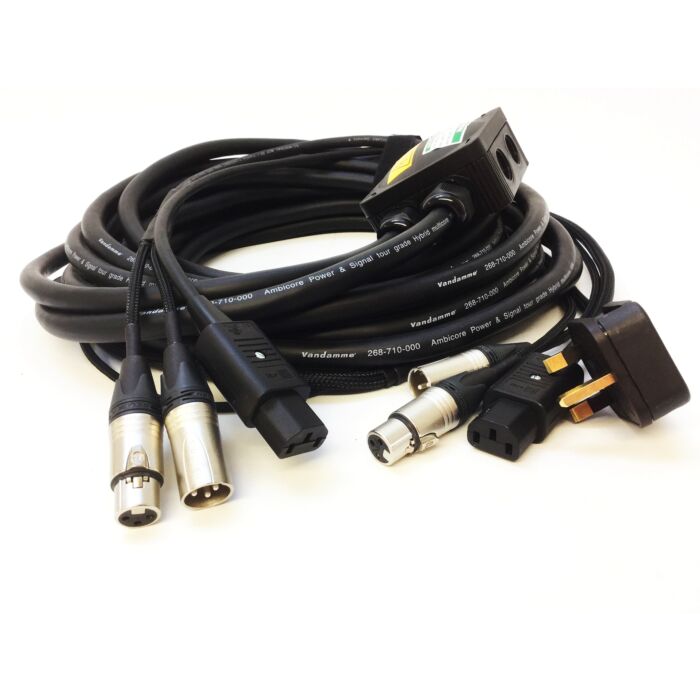

A single, neat solution to a common PA system headache: This cable is 10m long. At the Mixer end the loom has a Female XLR and 3 Pin UK Plug on 1m tails. The cable is joined for a further 9 meters. At the speaker end the power splits; one Schurter IEC for the top and one for the bottom. The signal from the mixer is sent to the bottom sub and a further XLR signal line is fed from the 'Link out' to the top speaker. All inside one neat cable solution!
A single, neat solution to a common PA system headache: This cable is 10m long. At the Mixer end the loom has a Female XLR and 3 Pin UK Plug on 1m tails. The cable is joined for a further 9 meters. At the speaker end the power splits; one Schurter IEC for the top and one for the bottom. The signal from the mixer is sent to the bottom sub and a further XLR signal line is fed from the 'Link out' to the top speaker. All inside one neat cable solution!
- Van Damme Ambicore 'Power & Signal' 10amp cable
- Permaplug tough rubber 13 amp UK Plug
- Schurter C13 IECs
- Braided 'Supaflex' tails
- Wiska distro box at the split in the cable
-
Assembled, tested and QC'd by qualified technicians to current wiring regulations. Supplied pat tested and labelled.
| Delivery Speed | Made to Order - 4 Days MAX on delivery |
|---|---|
| Cable Capacitance | .... |
| Cable Resistance | .... |
| Cable Conductor | 3x1.00mm2 AWG 17 triad |
| Cable Jacket | PVC. Overall diameter - 7.00mm ±0.15 |
| Cable Brand | Van Damme |
| Application | Tour Grade |
| Contact Material | Silver Plated |
| Number of Contacts | 3 Pole |
