Custom RJM Mastermind, Axe-fx & Rack Gizmo Panel

£320.00
In stock
We have 1312 items in stock!
SKU
CUSTOM PANEL (Contact Customer)

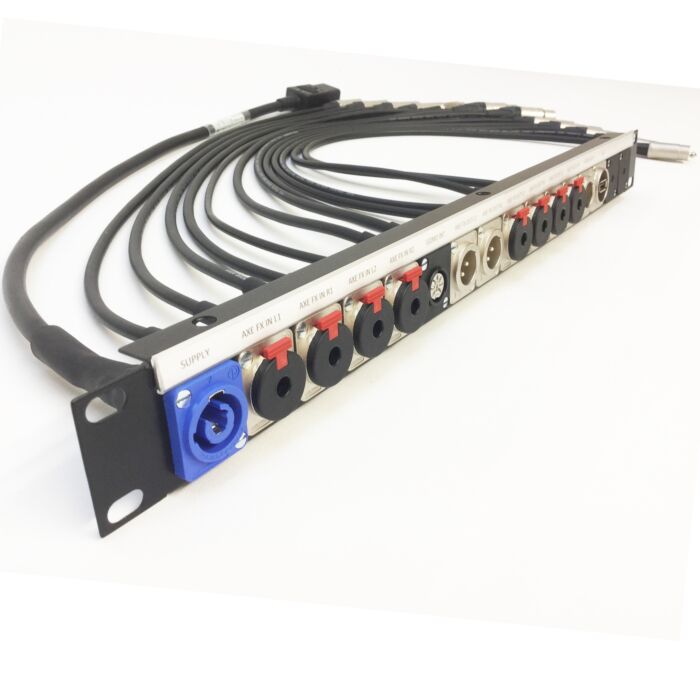

A custom panel manufactured for a customer wanting to hard wire the inputs and outputs of Rack Gizmo, RJM mastermind and Fractal Axe-fx. These can be wired to your own specification.



Below is the wiring scheme and layout specified by the customer.....


1) NAC3MPA-1 > 50cm > IEC Female C19

2) NJ3FP6C > 50cm > NP3X (left) Axe FX Input 1Balanced

3) NJ3FP6C > 50cm > NP3X (right) Axe FX Input 1 Balanced

4NJ3FP6C > 50cm > NP3X (left) Axe FX Input 2Balanced

5) NJ3FP6C > 50cm > NP3X (left) Axe FX Input 2 Balanced

6) 8 pin din Chassis > 50cm > 8 Pin Din - Rack Gizmo Amp Interface Cable

7) NC3MDLX > 50cm > NC3FXX (left) Axe Fx Output 1 Balanced

8) NC3MDLX > 50cm > NC3FXX (right) Axe FX Output 1 Balanced

9) NJ3FP6C > 50cm > NP2X (left) Axe Fx Output 1 Unbalanced

10) NJ3FP6C > 50cm > NP2X (right) Axe Fx Output 1 Unbalanced

11) NJ3FP6C > 50cm > NP2X (Left) Axe Fx Output 2 Unbalanced

12) NJ3FP6C > 50cm > NP2X (Right) Axe Fx Output 2 Unbalanced

13) NC*7*MDLX > 50cm > 7 Pin Din (wired straight through)

14)NAUSB-W

15) Spare

16) Spare
More Information
Connector Type TS Mono Jack
Manufacturer Neutrik
Metal Type.... Silver Plated
