Digital AES & DMX Lead. 3 Pin. Female XLR to Male XLR 110ohm

Digital AES and DMX Lead. 3 Pin. Van Damme Cable, Female XLR to Male XLR 110ohm

Van Damme Digi-Tour Grade AES/EBU microphone and DMX cable is a black jacketed version of the Van Damme Green Series 6.20mm OD AES microphone cable 268-402-050. Low capacitance and stable characteristic impedance ensure that signals remain error and jitter free over long distances. Also suitable for balanced analogue audio use.

Commonly used for connecting DMX lighting to DMX controllers and for connecting digital 110ohm AES equipment in studios and HIFi setups.

*Compatible with Line 6 L6 Digital LINK

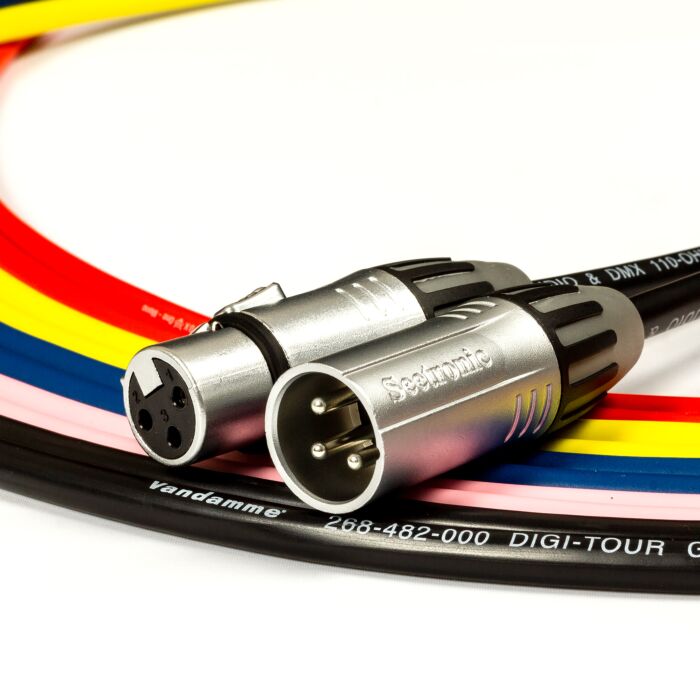

The classic looking XLR connectors are by Seetronic. They offer a rugged chuck type cable strain relief along with a tough polyurethane boot and die cast metal casing. Simplicity is key when it comes to connector assembly, these have 4 integral parts that lock together when assembled and squeeze down on to the cable to ensure a rock-solid termination that will not come un-stuck without disassembly. Seetronic represent excellent value for money.

Cable Spec

• Conductor Material: Bare ultra pure oxygen free copper wire
• Insulation Material: Foam skin polyolefin
• Screen Type: 24μm Aluminium/polyester foil >150% coverage
• Capacitance (Core/core): 50pF/m nominal
• Impedance: 110Ohms ±20%

Connector Spec

• Rated current per contact: 16A
• Locking device: Latch lock
• Boot: Polyurethane
• Contacts: Cu alloy
• Contact plating: Sn
• Insert: Polyamide (PA 66 +30 % GF)
• Shell: Zinc diecast (ZnAl4Cu1)
• Shell plating: Cr
• Protection class: IP40
• Temperature range: -30℃to +80℃
