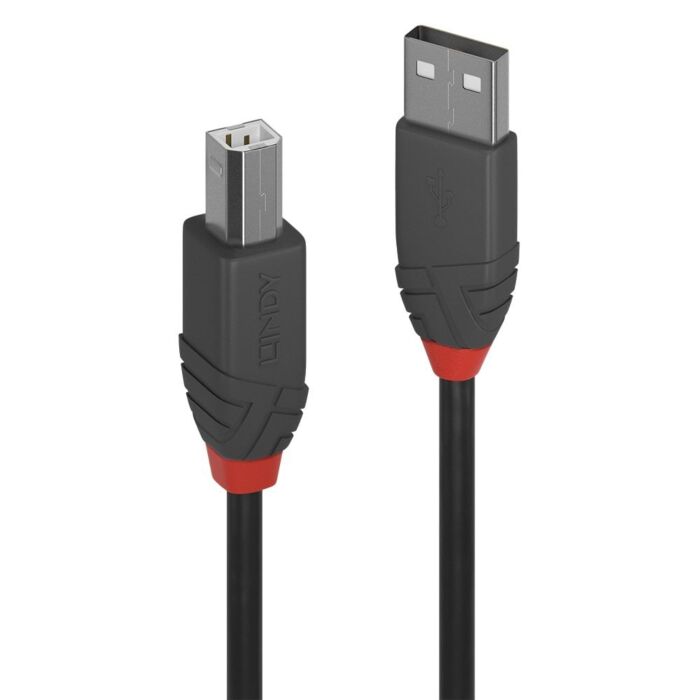

Lindy Type A to Type B 2.0 USB Cable - Anthra Line
As low as
£1.76
In stock
SKU
USBA.USBB.2.0.Anthra
Multibuy discounts calculated at checkout
The Lindy USB 2.0 Type A to B Cable – Anthra Line is a high-quality cable designed for reliable connections between computers and USB-B devices such as printers, scanners or audio interfaces. Supporting USB 2.0 transfer speeds up to 480Mbps, it features double shielding, tinned copper conductors and gold-plated contacts to maintain stable signal transmission and long-lasting performance in professional AV and IT environments.
The Lindy USB 2.0 Type A to B Cable – Anthra Line is a high-quality cable designed for reliable connections between computers and USB-B devices such as printers, scanners or audio interfaces. Supporting USB 2.0 transfer speeds up to 480Mbps, it features double shielding, tinned copper conductors and gold-plated contacts to maintain stable signal transmission and long-lasting performance in professional AV and IT environments.
The Lindy Anthra Line USB 2.0 Type A to Type B cable supports high-speed data transfer up to 480Mbps and features double shielding, tinned copper conductors and gold-plated contacts for reliable, long-lasting connections between computers and devices such as printers or audio interfaces.
Wiring Notes
A USB 2.0 Type A to Type B cable connects a computer to peripherals such as printers, scanners or audio interfaces. Inside the cable, four wires carry 5V power, ground, and differential data signals (D+ and D−), enabling the host device to transmit encoded data at speeds of up to 480Mbps while optionally supplying power to the connected device.
Why Lindy Cables?
Lindy cables are trusted worldwide for their reliable performance, durable construction and professional-grade connectivity solutions across AV and IT applications.
Proven brand – Over 90 years of experience in connectivity technology
- High-quality construction – Designed for reliable signal transmission and durability
- Professional AV performance – Suitable for commercial, high-performance AV and IT installations
Technical Specification
- Connector A: USB 2.0 Type A Male
- Connector B: USB 2.0 Type B Male
- Housing Material: PVC
- Connector Plating: Nickel
- Pin Construction: Copper
- Pin Plating: 24K Gold
- Dimensions, USB A (approx.) WxDxH: 15.5x35x7.8mm (0.61x1.38x0.31in)
- Dimensions, USB B (approx.) WxDxH: 11.8x35x10.2mm (0.47x1.38x0.40in)
- Jacket Diameter: 4.4mm (0.17in)
- Jacket Material: PVC
- Conductor Material: Tinned Copper
- Conductor Gauge: 26/28AWG
- Shielding: Aluminium Magnesium Braid
- Supported Bandwidth: 480Mbps
- Nominal Attenuation: 5.8db/km
- Minimum Bend Radius: 16mm (0.63in)
- Operating Temperature: 0°C - 60°C (32°F - 140°F)
Standards & Compliance
- RoHS certified
- REACH certified
- UL certified
Part Numbers
- 36670 - Lindy Type A to Type B 2.0 USB Cable - Anthra Line - 20cm
- 36671 - Lindy Type A to Type B 2.0 USB Cable - Anthra Line - 50cm
- 36672 - Lindy Type A to Type B 2.0 USB Cable - Anthra Line - 1m
- 36673 - Lindy Type A to Type B 2.0 USB Cable - Anthra Line - 2m
- 36674 - Lindy Type A to Type B 2.0 USB Cable - Anthra Line - 3m
- 36675 - Lindy Type A to Type B 2.0 USB Cable - Anthra Line - 5m
- 36676 - Lindy Type A to Type B 2.0 USB Cable - Anthra Line - 7.5m
- 36677 - Lindy Type A to Type B 2.0 USB Cable - Anthra Line - 10m
| Delivery Speed | Next Day delivery available if 'In Stock' |
|---|---|
| Cable Capacitance | - |
| Cable Resistance | - |
| Cable Conductor | 26/28AWG Tinned Copper |
| Cable Screening | Aluminium Magnesium Braid |
| Cable Jacket | 4.4mm PVC |
| Overall Diameter | - |
| Cable Brand | Lindy |
| Application | Tour & Studio Grade |
| Contact Material | Gold Plated |
