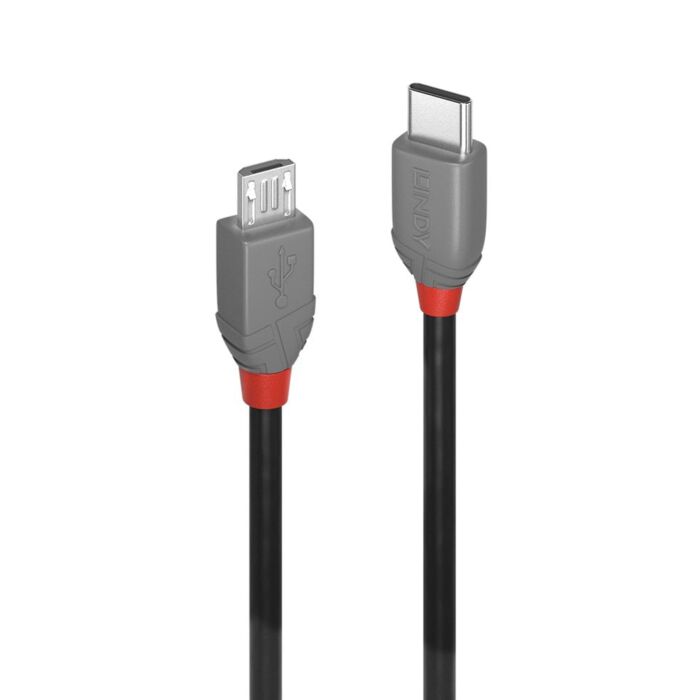

Lindy Type C to Micro-B USB 2.0 Cable - Anthra Line
Multibuy discounts calculated at checkout
The Lindy Anthra Line USB 2.0 Type-C to Micro-B cable provides reliable connectivity between USB-C devices and Micro-USB peripherals, supporting data transfer speeds up to 480Mbps. Built with double shielding, tinned copper conductors and gold-plated connectors, it ensures stable performance and durable connections for AV, IT and everyday device use.
The Lindy Anthra Line USB 2.0 Type-C to Micro-B cable provides reliable connectivity between USB-C devices and Micro-USB peripherals, supporting data transfer speeds up to 480Mbps. Built with double shielding, tinned copper conductors and gold-plated connectors, it ensures stable performance and durable connections for AV, IT and everyday device use.
The Lindy Anthra Line USB-C to Micro-USB cable provides reliable charging and USB 2.0 data transfer up to 480Mbps, making it ideal for connecting smartphones, cameras, portable drives and other Micro-USB devices to USB-C computers or chargers.
Wiring Notes
A USB-C to Micro-USB cable works by linking a USB-C host device to a Micro-USB peripheral using internal conductors that carry power and differential data signals, allowing devices to charge and transfer data at speeds up to 480Mbps using the USB 2.0 standard.
Why Lindy Cables?
Lindy cables are trusted worldwide for their reliable performance, durable construction and professional-grade connectivity solutions across AV and IT applications.
- Proven brand – Over 90 years of experience in connectivity technology
- High-quality construction – Designed for reliable signal transmission and durability
- Professional AV performance – Suitable for commercial, high-performance AV and IT installations
Technical Specification
- Connector A: USB 2.0 Type C Male
- Connector B: USB 2.0 Micro B Male
- Housing Material: PVC
- Connector Plating: 24K Gold Plated
- Pin Construction: Phosphor Bronze
- Pin Plating: 24K Gold Plated
- Dimensions, USB Type C (approx.) WxDxH: 11.0x25.5x7.3mm (0.43x1.00x0.29in)
- Dimensions, USB Type Micro-B (approx.) WxDxH: 10.0x24x6.5mm (0.39x0.95x0.26in)
- Jacket Diameter: 3.5mm (0.14in)
- Jacket Material: PVC
- Conductor Material: Tinned Copper
- Conductor Gauge: 28AWG
- Shielding: Copper Braid 60%
- Supported Bandwidth: 480Mbps
- Nominal Attenuation: 0.5-3m: 0.5Mhz – 400Mhz < 5.8db
- Minimum Bend Radius: 35mm (1.38in)
- Operating Temperature: -20°C - 80°C (-4°F - 176°F)
- Storage Temperature: -25°C - 85°C (-13°F - 185°F)
Standards & Compliance
- RoHS certified
- REACH certified
- UL certified
Part Numbers
- 36890 - Lindy Type C to Micro-B USB 2.0 Cable - Anthra Line - 50cm
- 36891 - Lindy Type C to Micro-B USB 2.0 Cable - Anthra Line - 1m
- 36892 - Lindy Type C to Micro-B USB 2.0 Cable - Anthra Line - 2m
- 36893 - Lindy Type C to Micro-B USB 2.0 Cable - Anthra Line - 3m
| Delivery Speed | Next Day delivery available if 'In Stock' |
|---|---|
| Cable Capacitance | - |
| Cable Resistance | - |
| Cable Conductor | 28AWG Tinned Copper |
| Cable Screening | Copper Braid 60% |
| Cable Jacket | 3.5mm PVC |
| Overall Diameter | - |
| Cable Brand | Lindy |
| Application | Tour & Studio Grade |
| Contact Material | Gold Plated |
