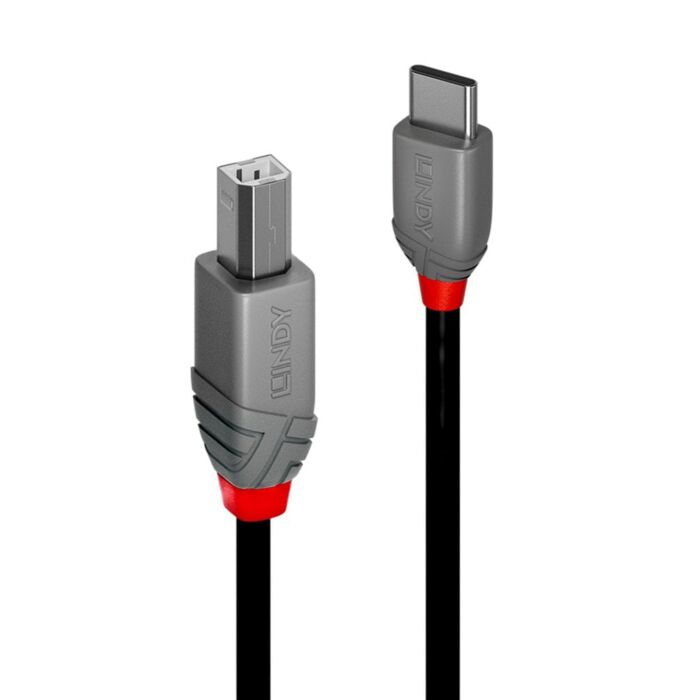

Lindy Type C to Type B USB 2.0 Cable - Anthra Line
As low as
£5.48
In stock
SKU
USBC.USBB.2.0.Anthra
Multibuy discounts calculated at checkout
The Lindy Anthra Line USB 2.0 Type-C to Type-B cable provides reliable connectivity for AV and IT installations, supporting data transfer speeds up to 480Mbps. Built with double shielding, tinned copper conductors and gold-plated contacts, it ensures stable signal transmission and durable long-term performance.
The Lindy Anthra Line USB 2.0 Type-C to Type-B cable provides reliable connectivity for AV and IT installations, supporting data transfer speeds up to 480Mbps. Built with double shielding, tinned copper conductors and gold-plated contacts, it ensures stable signal transmission and durable long-term performance.
The Lindy USB-C to USB-B cable connects modern USB-C devices to USB-B equipment, providing dependable charging and USB 2.0 data transfer up to 480Mbps, making it ideal for printers, scanners, audio interfaces and external devices.
Wiring Notes
A USB-C to USB-B cable works by linking a USB-C host device to a USB-B peripheral using internal conductors that carry power and differential data signals, allowing devices to communicate and transfer data at speeds of up to 480Mbps while supplying power if needed.
Why Lindy Cables?
Lindy cables are trusted worldwide for their reliable performance, durable construction and professional-grade connectivity solutions across AV and IT applications.
- Proven brand – Over 90 years of experience in connectivity technology
- High-quality construction – Designed for reliable signal transmission and durability
- Professional AV performance – Suitable for commercial, high-performance AV and IT installations
Technical Specification
- Connector A: USB 2.0 Type C Male
- Connector B: USB 2.0 Type B Male
- Housing Material: PVC
- Connector Plating: Nickel
- Pin Construction USB C: High conductivity copper
- Pin Construction USB B: Brass
- Pin Plating: Gold
- Dimensions, USB C (approx.) WxDxH: 10.9x28.3x7.2mm (0.43x1.11x0.28in)
- Dimensions, USB B (approx.) WxDxH: 11.8x47x10.2mm (0.46x1.85x0.4in)
- Jacket Diameter: 4.4mm (0.17in)
- Jacket Material: PVC
- Conductor Material: Tinned Copper
- Conductor Gauge Power: 26AWG
- Conductor Gauge Data: 28AWG
- Shielding: Aluminium Magnesium Braid 65%
- Shielding in connector head shell: Copper foil
- Supported Bandwidth: 480Mbps
- Nominal Attenuation: 1 - 400MHz < 5.8dB
- Minimum Band Radius: 25mm (0.98in)
- Operating Temperature: 0°C - 40°C (32°F - 104°F)
- Storage Temperature: 0°C - 70°C (32°F - 158°F)
Standards & Compliance
- RoHS certified
- REACH certified
- California Proposition 65 certified
- UL certified
Part Numbers
- 36940 - Lindy Type C to Type B USB 2.0 Cable - Anthra Line - 50cm
- 36941 - Lindy Type C to Type B USB 2.0 Cable - Anthra Line - 1m
- 36942 - Lindy Type C to Type B USB 2.0 Cable - Anthra Line - 2m
- 36943 - Lindy Type C to Type B USB 2.0 Cable - Anthra Line - 3m
| Delivery Speed | Next Day delivery available if 'In Stock' |
|---|---|
| Cable Capacitance | - |
| Cable Resistance | - |
| Cable Conductor | 26/28AWG Tinned Copper |
| Cable Screening | Aluminium Magnesium Braid 65% |
| Cable Jacket | 4.4mm PVC |
| Overall Diameter | - |
| Cable Brand | Lindy |
| Application | Tour & Studio Grade |
| Contact Material | Gold Plated |
