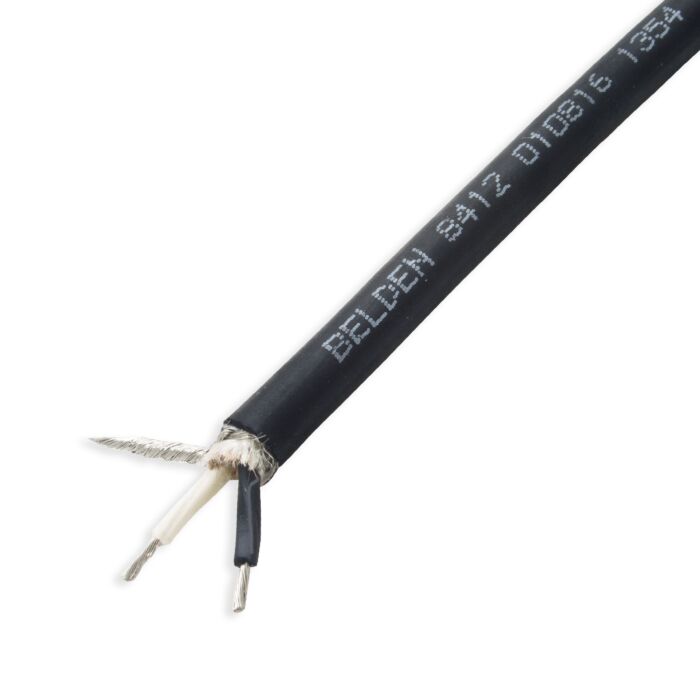

Low Impedance Belden 8412 Microphone Cable. 20awg Tinned Copper Conductors
As low as
£1.63
In stock
SKU
CABLE.BAL.BEL8412.PRNT
Multibuy discounts calculated at checkout
Beldens 8412 Cable is a flexible twin-conductor, low-impedance cable. This cable is known for its rugged reliability due to its rubber insulation and jacket, and a cotton wrap filler.
Beldens 8412 Cable is a flexible twin-conductor, low-impedance cable. This cable is known for its rugged reliability due to its rubber insulation and jacket, and a cotton wrap filler.
- Conductors: 26/0.16mm (26/34AWG) (0.52mm sq.) (20AWG) tinned copper
- Insulation: EPDM (ethylene propylene monomer rubber), 2.11mm OD, white, black
- Construction: Two cores twisted together with cotton yarn fillers, overlaid with rayon braid
- Screen: Braided tinned copper wire, 85% optical coverage
- Over screen: Cotton wrap
- Overall jacket: EPDM (ethylene propylene monomer rubber), 6.65mm OD, black
- Capacitance: 98pF/m core to core, 180pF/m core to core+screen
| Delivery Speed | Next Day delivery available if 'In Stock' |
|---|---|
| Cable Type | Analogue Audio - Balanced |
| Cable Brand | Belden |
| Cable Conductor | 26/0.16mm (26/34AWG) (0.52mm sq.) (20AWG) tinned copper |
| Cable Resistance | Nominal Characteristic Impedance 67 Ohm |
| Cable Capacitance | 180pF/m core to core+screen |
| Cable Screening | Braided tinned copper wire, 85% optical coverage |
| Overall Diameter | 6.65mm |
| Cable Jacket | EPDM (ethylene propylene monomer rubber), black |
