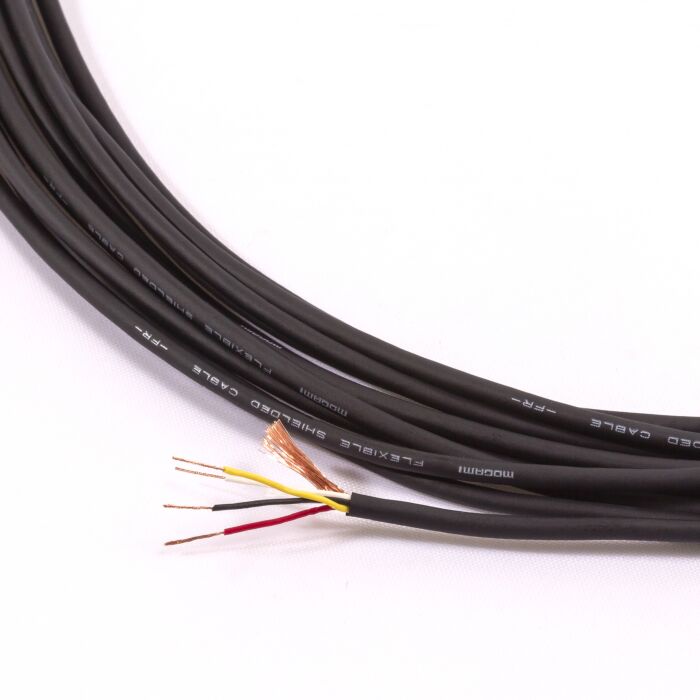

Mogami 2739 - Ultraflexible Miniature Cables - 2.1mm OD - 4 Core & Screen
As low as
£0.41
In stock
SKU
CABLE.MOG.MINIATURE.2739.BK.PRNT
Multibuy discounts calculated at checkout
Most of these miniature cables were developed as custom cables for magnetic head leads for computer drives, which must be moved rapidly and precisely with very low force. All are very soft and highly flexible with excellent shielding.
Most of these miniature cables were developed as custom cables for magnetic head leads for computer drives, which must be moved rapidly and precisely with very low force. All are very soft and highly flexible with excellent shielding.
Ultraflexible Miniature Cables
 |
 |
 |
 |
| W2912 | W2943 | W2784 | W2754 |
 |
 |
 |
| W2739 | W2780 | W2880 |
| Part No. | Conductor Size | Ov. Dia. (mm) | Available Colour |
| 2680-0X | #33AWG (0.0314mm²) | 0.6mm (0.0236) | Standard 10 Colors |
| 2912-0X | #28AWG (0.0854mm²) | 0.85mm (0.0335) |
SHIELDED CABLES
| Nos. of Conductor | #33 AWG SERIES | #32 AWG SERIES | #28 AWG SERIES | |||
| Part No. | Ov. Dia. (mm) | Part No. | Ov. Dia. (mm) | Part No. | Ov. Dia. (mm) | |
| 1 | - | - | 2444-0X | 1.0mm (0.0394") | 2943 | 1.5mm (0.0591") |
| 2 | 2784-0X | 1.8mm (0.0709") | 2490-08 | 1.7mm (0.0669") | 2794-00 | 2.3mm (0.0906") |
| 3 | 2754-08 | 1.95mm (0.0768") | 2879-08 | 1.8mm (0.0709") | 2790-00 | 2.45mm (0.0965") |
| 4 | 2739-0X | 2.1mm (0.0827") | 2769-0X | 2.0mm (0.0787") | 2929-00 | 2.7mm (0.106") |
| 5 | 2780-00 | 2.2mm (0.0866") | - | - | - | - |
| 6 | 2880-00 | 2.5mm (0.0984") | - | - | 3128 | 3.3 mm (.130") |
| Flexibility / Flex Life | 1 | 3 | 2 | |||
| Easiness of cable end treatment | 3 | 2 | 1 | |||
| Low cost | 2 | 1 | 3 | |||
CONSTRUCTION
| Part No. | Conductor | Insulation | Weight | ||
| Details | Size (mm²) | Ov. Dia. (mm) | Material | ||
| W2680 | 25/0.04A | 0.0314mm² (#33AWG) | 0.60Ø (0.0236") | Flexible PVC | 0.52kg |
| W2912 | 17/0.08A | 0.0854mm² (#28AWG) | 0.85Ø (0.0335") | Flexible PVC | 1.03kg |
| Common Construction | Roll Size | Color | Details of Colors |
| 2,000 Ft spool | 10 colours | Black/Brown/Red/Orange/Yellow/ Green/Blue/Violet/Gray/White |
ELECTRICAL & MECHANICAL CHARACTERISTICS
| Part No. | DC Resistance at 20°C | Tensile Strength | Flex Life (cycles) |
| W2680 | 0.6Ω/m(0.183Ω/Ft) | 8.3 N | 21,000 |
| W2912 | 0.22Ω/m(0.0672Ω/Ft) | 21 N | 32,000 |
COMMON CHARACTERISTICS
| Voltage Breakdown | Must withstand at DC 500V/15sec. |
| Insulation Resistance | 1000 MΩ × m Min. at DC 250V , 20°C |
| Emigration | Non-emigrant to ABS resin |
| Applicable Temperature | -20°C‾ +80°C(-4°F‾ +176°F) |
| Standard | UL758 STYLE 1571 80°C 30V VW-1SC |
SHIELDED WIRE #32AWG SERIES
CONSTRUCTION
| Common Construction | Conductor | Insulation | ||
| Details | Size (mm²) | Ov. Dia.(mm) | Material | |
| 7/0.08TA | 0.0351mm² (#32AWG) | 0.53Ø (0.0209") | Flexible PVC | |
| Part No. | Nos. of Conductor | Shield Served Shield |
Jacket | Color | Roll Size | Weight | |
| Ov. Dia. (mm) | Material | ||||||
| W2444 | 1 | Approx. 23/0.08A | 1.0Ø (0.0394") | Flexible PVC | Black/Gray | 305m (1,000Ft) | 0.75kg |
| W2490 | 2 | Approx. 30/0.10A | 1.7Ø (0.0669") | Gray | 1.55kg | ||
| W2879 | 3 | Approx. 30/0.10A | 1.8Ø (0.0709") | Gray | 1.83kg | ||
| W2769 | 4 | Approx. 40/0.10A | 2.0Ø (0.0787") | Black/Gray | 2.28kg | ||
ELECTRICAL & MECHANICAL CHARACTERISTICS
| Part No. | DC Resistance at 20°C | Flex Life (cycles) | |
| Inner Conductor | Shield Conductor | ||
| W2444 | 0.53Ω/m(0.162Ω/Ft) | 0.16Ω/m(0.0488Ω/Ft) | 13,000 |
| W2490 | 0.55Ω/m(0.168Ω/Ft) | 0.08Ω/m(0.0244Ω/Ft) | 9,100 |
| W2879 | 0.08Ω/m(0.0244Ω/Ft) | 22,000 | |
| W2769 | 0.06Ω/m(0.0183Ω/Ft) | 20,000 | |
COMMON CHARACTERISTICS
| Voltage Breakdown | Must withstand at DC 250V/15sec. |
| Insulation Resistance | 1000 MΩ × m Min. at DC 250V , 20°C |
| Tensile strength (26°C, 65%RH) | 9.8 N (Per One Core Conductor) |
| Emigration | Non-emigrant to ABS resin |
| Applicable Temperature | -20°C‾ +80°C(-4°F‾ +176°F) |
| Standard | UL758 STYLE 2844 80#176;C 30V VW-1SC 32AWG |
CONSTRUCTION
| Common Construction | Conductor | Insulation | ||
| Details | Size (mm²) | Ov. Dia.(mm) | Material | |
| 17/0.08TA | 0.0854mm² (#28AWG) | 0.83Ø (0.0327") | Flexible PVC | |
| Part No. | Nos. of Conductor | Filler | Shield Served Shield |
Jacket | Color | Roll Size | Weight | |
| Ov. Dia. (mm) | Material | |||||||
| W2943 | 1 | - | Approx. 35/0.08A | 1.5Ø (0.0591") | Flexible PVC | Black | 305m (1,000Ft) | 1.37kg |
| W2794 | 2 | - | Approx. 52/0.08A | 2.3Ø (0.0906") | Black | 2.55kg | ||
| W2790 | 3 | - | Approx. 70/0.08A | 2.45Ø (0.0965") | Black | 3.25kg | ||
| W2929 | 4 | Polypropylene | Approx. 83/0.08A | 2.7Ø (0.1063") | Black | 4.0kg | ||
ELECTRICAL & MECHANICAL CHARACTERISTICS
| Part No. | DC Resistance at 20°C | Flex Life (cycles) | |
| Inner Conductor | Shield Conductor | ||
| W2943 | 0.22Ω/m(0.0671Ω/Ft) | 0.11Ω/m(0.0336Ω/Ft) | 36,000 |
| W2794 | 0.07Ω/m(0.0214Ω/Ft) | 16,000 | |
| W2790 | 0.053Ω/m(0.0162Ω/Ft) | 28,000 | |
| W2929 | 0.045Ω/m(0.0137Ω/Ft) | 21,000 | |
COMMON CHARACTERISTICS
| Voltage Breakdown | Must withstand at DC 250V/15sec. |
| Insulation Resistance | 1000 MΩ × m Min. at DC 250V , 20°C |
| Tensile strength (26°C, 65%RH) | 21 N (Per One Core Conductor) |
| Emigration | Non-emigrant to ABS resin |
| Applicable Temperature | -20°C‾ +80°C(-4°F‾ +176°F) |
| Standard | UL758 STYLE 2844 80°C 30V VW-1SC 28AWG |
CONSTRUCTION
| Common Construction | Conductor | Insulation | ||
| Details | Size (mm²) | Ov. Dia.(mm) | Material | |
| 25/0.04A | 0.0314mm² (#33AWG) | 0.60Ø (0.0236") | Flexible PVC | |
| Part No. | Nos. of Conductor | Filler | Shield Served Shield |
Jacket | Color | Roll Size | Weight | |
| Ov. Dia. (mm) | Material | |||||||
| W2784 | 2 | - | Approx. 35/0.08A | 1.8Ø (0.0709") | Flexible PVC | Black/Gray | 305m (1,000Ft) | 1.56kg |
| W2754 | 3 | - | Approx. 54/0.08A | 1.95Ø (0.0768") | Gray | 2.05kg | ||
| W2739 | 4 | Polypropylene | Approx. 60/0.08A | 2.1Ø (0.0827") | Black/Gray | 2.44kg | ||
| W2780 | 5 | Polypropylene | Approx. 65/0.08A | 2.2Ø (0.0866") | Black | 2.85kg | ||
| W2880 | 6 | Polypropylene | Approx. 68/0.08A | 2.5Ø (0.0984") | Black | 3.24kg | ||
ELECTRICAL & MECHANICAL CHARACTERISTICS
| Part No. | DC Resistance at 20°C | Flex Life (cycles) | |
| Inner Conductor | Shield Conductor | ||
| W2784 | 0.6Ω/m(0.183Ω/Ft) | 0.1Ω/m(0.0305Ω/Ft) | 20,000 |
| W2754 | 0.07Ω/m(0.021Ω/Ft) | 36,000 | |
| W2739 | 0.06Ω/m(0.0184Ω/Ft) | 57,000 | |
| W2780 | 0.057Ω/m(0.0174Ω/Ft) | 35,000 | |
| W2880 | 0.05Ω/m(0.0153Ω/Ft) | 50,000 | |
COMMON CHARACTERISTICS
| Voltage Breakdown | Must withstand at DC 250V/15sec. |
| Insulation Resistance | 1000 MΩ × m Min. at DC 250V , 20°C |
| Tensile strength (26°C, 65%RH) | 8.3 N (Per One Core Conductor) |
| Emigration | Non-emigrant to ABS resin |
| Applicable Temperature | -20°C‾ +80°C(-4°F‾ +176°F) |
| Standard | UL758 STYLE 2844 80°C 30V VW-1SC 33AWG |
STANDARD COLOUR COMBINATION OF SHIELDED CORES
| Nos. of Cores | 1 | 2 | 3 | 4 | 5 | 6 |
| Core Colour | White | White/Red | White/Red/ Black |
White/Red/ Black/Yellow |
White/Red/Black/ Yellow/Blue |
White/Red/Black/ Yellow/Blue/Green |
| Exception | Part No. W2769 | White/Yellow/Blue/Green |
| Delivery Speed | Next Day delivery available if 'In Stock' |
|---|---|
| Cable Type | Analogue Audio - Balanced |
| Cable Brand | Mogami |
| Cable Conductor | 0.0314mm² (#33AWG) |
| Cable Resistance | DC - 0.6Ω/m(0.183Ω/Ft) |
| Cable Screening | Approx. 60/0.08A |
| Overall Diameter | 2.1mm (0.0827") |
| Cable Jacket | Flexible PVC |
