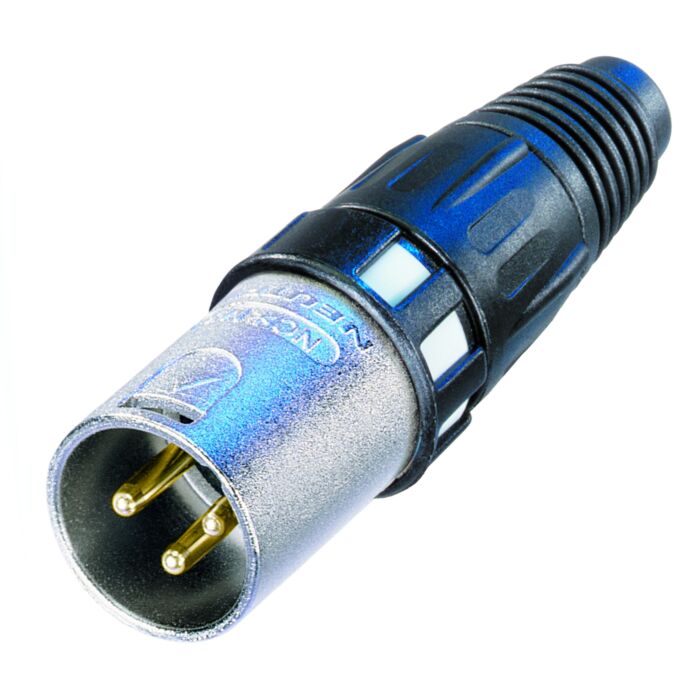

Neutrik 3 Pin 110ohm Digital NC3MXCC Male XLR Connector

NC3MXCC

3 pole male cable connector, RF-protected, gold contacts

• Cable O.D.: 5.4 - 6.2 mm
• Crimp Size Shield: 6.5 mm (hex)

The XCC XLR cable connector Series  with circumferential shield contact provides excellent RF-protection to transmit digital audio signals most efficient and reliable. This XLR features a coaxial ground spring and a coaxial hex crimp ferrule at the cable entrance for proper and reliable transition of the shield to the shell.

Features and Benefits

• 3 pole cable connector with a circumferential shield contact for best EMI protection
• XCCR coding ring to indicate digital AES signals included
• Rugged zinc diecast shell, long lasting and durable
• Chuck type strain relief system for secure clamping of cables
• Boot with rubber gland gives high protection against bending stresses

Electrical

• Capacitance between contacts - ≤ 4 pF
• Contact resistance - ≤ 3 mΩ (inner)
• Dielectric strength - 1,5 kVdc
• Insulation resistance - > 10 GΩ (initial)
• Rated current per contact - 16 A
• Rated voltage - < 50 V
• Shielding effectiveness - > 55 dB @ 1.3 GHz

Mechanical

• Cable O.D. - 5.4 - 6.2 mm
• Crimp size - 6,47 Hex crimp (shield) acc. IEC 60803 (die designation E)
• Insertion force - ≤ 20 N
• Withdrawal force - ≤ 20 N
• Lifetime - > 1000 mating cycles
• Wiresize - max. 2.5 mm²
• Wiresize - max. 14 AWG
• Wiring - Solder contacts
• Locking device - Latch lock

Material

• Boot - Polyurethan
• Coding Ring - PA 6 15% GR
• Contact plating - 0.2 µm Au hard alloy over 2 µm Ni
• Contacts - Brass (CuZn39Pb3)
• Crimp ferrule - CuZn39Pb3, Ni plated
• Insert - Polyamide (PA 6.6 30 % GR)
• Locking element - Zinc diecast (ZnAl4Cu1)
• Shell - Zinc diecast (ZnAl4Cu1)
• Shell plating - Nickel
• Strain relief - Polyacetal (POM)
• Circumferential ground spring - CuSn6, Ni plated

Environmental

• Approvals - UL
• Flammability - UL 94 HB
• Standard compliance - IEC 61076-2-103
• Protection class - IP 40
• Solderability - Complies with IEC 68-2-20
• Temperature range - -30 °C to +80 °C
