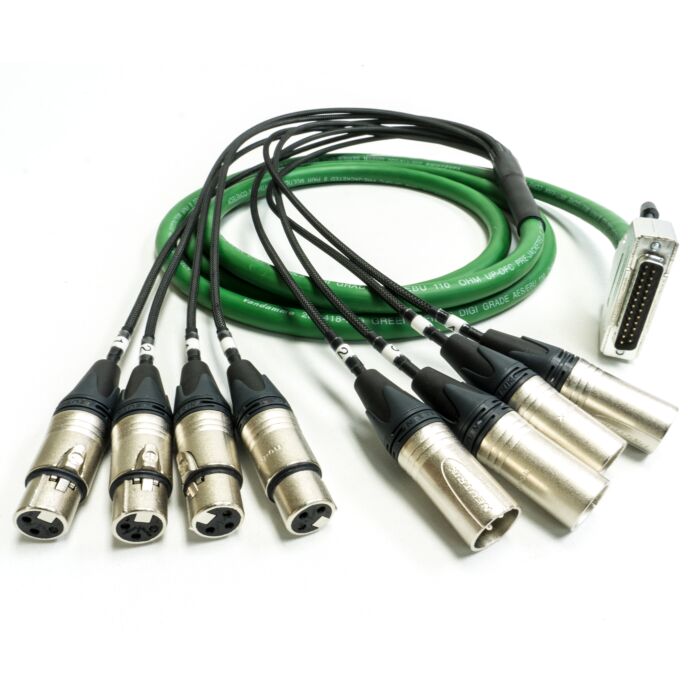

Van Damme Digi AES 110ohm Dsub To XLRs. 8in 8out. Neutrik. Tascam & Yamaha
As low as
£90.79
In stock
SKU
25PINDSUB-VD.DIGI.PRNT-4xFXX.4xMXX
Multibuy discounts calculated at checkout
Digi Spec 25pin Dsub to Neutrik XLR cables wired to either Tascam or Yamaha Digital Standards. We also offer the Prism Sound 'AES squid pinout'. What is the AES squid pinout? The AES squid pinout is Tascam Digital Wiring with custom labelling. For your convenience this is an available option to choose in the dropdown menus on this product listing.
Digi Spec 25pin Dsub to Neutrik XLR cables wired to either Tascam or Yamaha Digital Standards. We also offer the Prism Sound 'AES squid pinout'. What is the AES squid pinout? The AES squid pinout is Tascam Digital Wiring with custom labelling. For your convenience this is an available option to choose in the dropdown menus on this product listing.
Digi Spec 25pin Dsub to XLR cables wired to ‘Tascam or Yamaha Digital Standards’. The cable used is the much sort-after Van Damme Green Series and Digitour. Choose your preference using the dropdown menus above. The characteristic impedance of 110 Ohms makes them ideal for AES/EBU digital audio signals. Both cables have a flexible PVC jacket, Oxygen Free Copper conductors and 100% shielding by means of a thick Aluminium/Polyester Foil
The Dsubs and Neutrik XLRs vary slightly between the Green Series and Digitour, see below……
- Van Damme Digitour AES/EBU and DMX 8 pair multicore
- Black Dsub Shell with plastic thumb screws
- Machined pins; Solid Copper Alloy, Gold Plated
- 4x Neutrik NC3FXX-BAG (Female Inputs)
- 4x Neutrik NC3MXX-BAG (Male Outputs)
- Terminated with a 3.5% silver solder
- Van Damme Green Series Digi Grade 8 pair AES/EBU multicore
- Silver Dsub Shell with plastic thumb screws
- Stamped pins; Formed Copper Alloy, Gold Plated
- 4x Neutrik NC3FXX (Female Inputs)
- 4x Neutrik NC3MXX (Male Outputs)
- Terminated with a 3.5% silver solder
| Delivery Speed | Made to Order - Next Day Delivery Available |
|---|---|
| Cable Capacitance | Core to screen - 100 pF/m |
| Cable Resistance | Conductor < 144 Ohm/km |
| Cable Conductor | 7 x 0.16mm bare UPOFC. Size 7 x 0.16 mm, 0.14 mm2, AWG 26/7 |
| Cable Screening | 24 µm Aluminium/Polyester Foil > 150% coverage |
| Cable Jacket | Flexible PVC composite |
| Cable Brand | Van Damme |
| Application | Tour & Studio Grade |
| Contact Material | Silver Plated |
| Number of Contacts | 25 Pole |
| Multicore Core Count | 8 Way |
