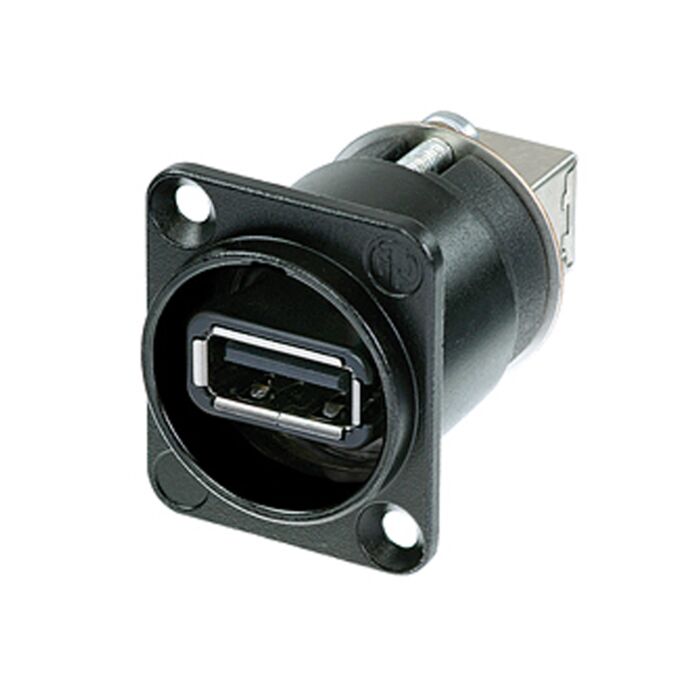

Neutrik NAUSB-W-B BLACK USB A to B Chassis Panel Mount. Reversible

Due to the rising digitisation the interface problems between audio/video networks, IT equipment, MP3 camcorders, etc. increase. A rugged solution is needed.

Neutrik's reversible USB gender changer, mounted in the standardized D-shape housing, and the rugged patch cables solve this problem.

• Ideal for audio networking and integration of computer-based equipment into audio systems
• IP65 ingress protection in mated condition with NKUSB-* and SCDP-* sealing gasket
• Optional screen to chassis grounding
• USB 2.0 gender changer type A-B (B-A)
• Reversible insert offering type A or B on front or rear end
• Universally accepted standard D-shape housing

Technical Info

• Connection Type - Adapter
• Gender - female
• Mounting direction - Front mounting
• Chassis shape - D
• Lifetime - > 1000 mating cycles
• Contact plating - Au
• Contacts - Brass (CuZn39Pb3)
• Insert - PBTP 15 % GR
• Shell - Zinc diecast (ZnAl4Cu1)
• Shell plating - Black chromium
• Flammability - UL 94 V-0
• Standard compliance - USB 2.0 specifications
• Temperature range - -25 °C to +85 °C
